Jiangsu Jingzhongjing Industry Coating Equipment Co., Ltd.
Vehicle Painting Line Equipment
Due to the wide range of automotive parts, specifications, heavy machine, large parts, generally use the spraying robot spraying method for coating. Spraying tools include air spray gun, high-pressure airless spray gun, air-assisted spray gun and portable electrostatic spray gun. Air spray gun spraying efficiency is low, high-pressure airless spray gun waste of paint, the two common characteristics of environmental pollution is more serious, so the air-assisted spray gun and portable electrostatic spray gun is being replaced.

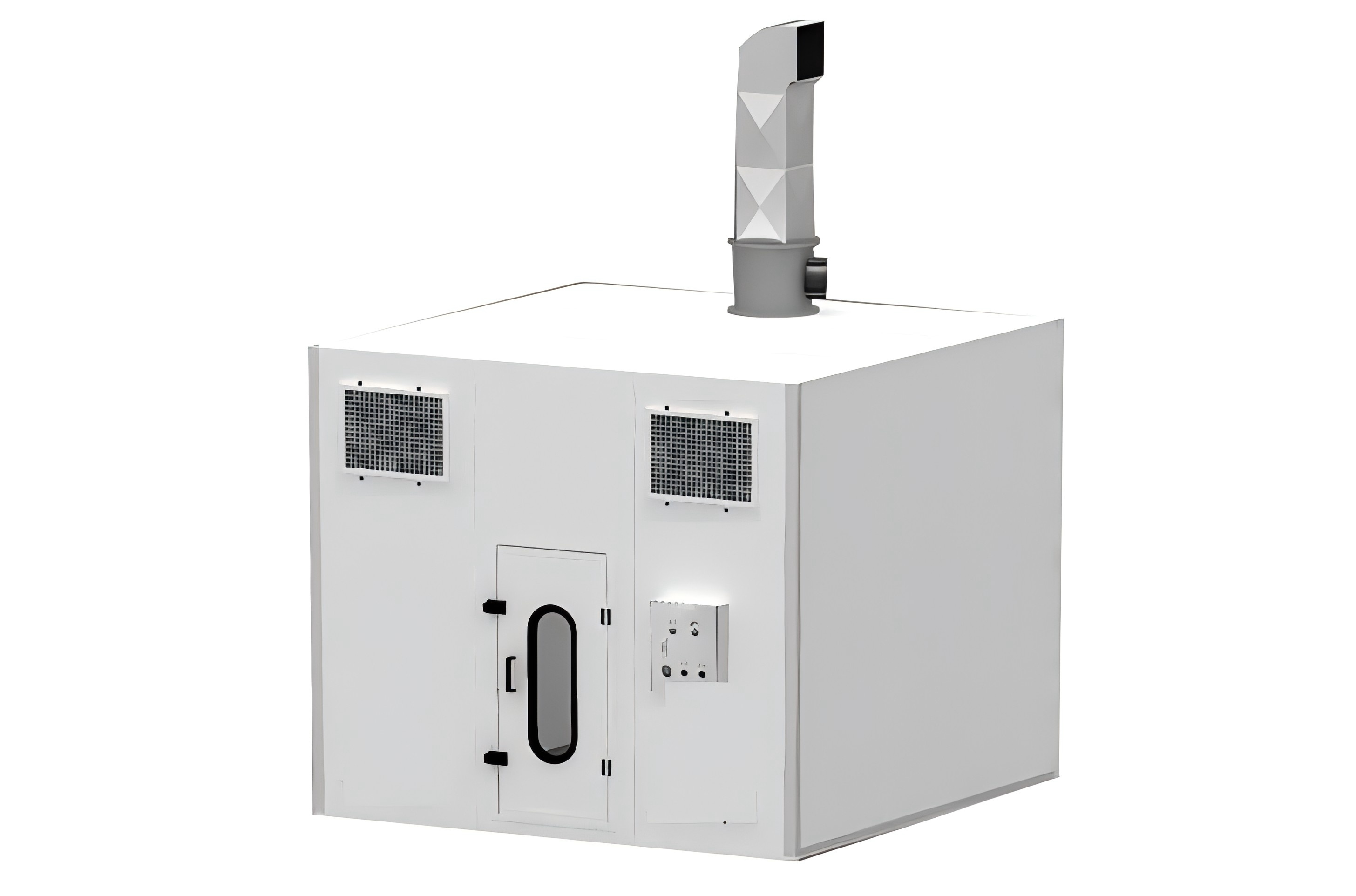

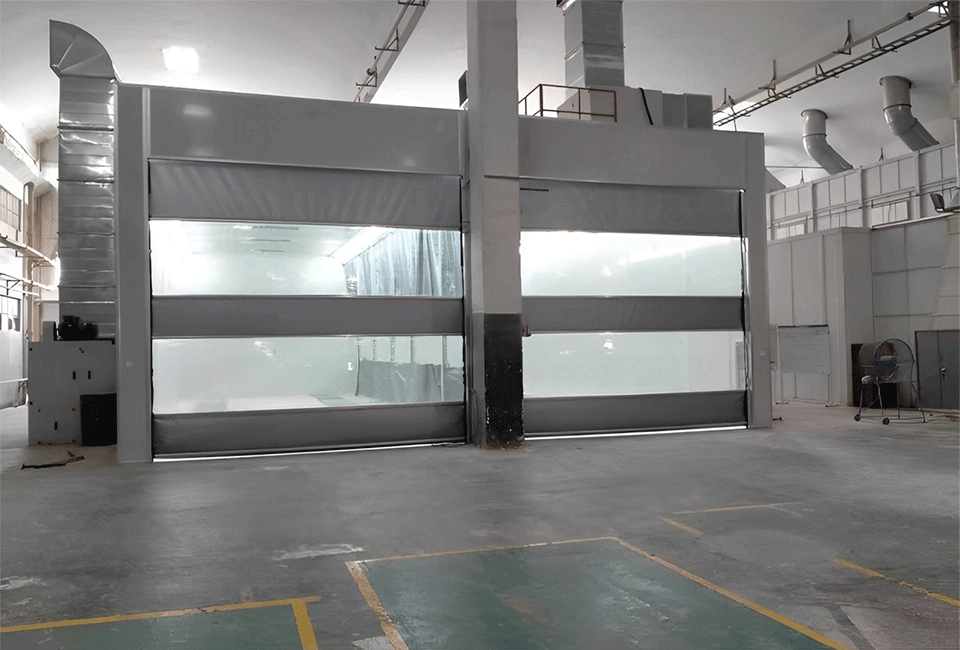

Paint/Spray Booths
As the name suggests, is to spray paint and color the filter paint objects in one room. It is also called a paint room. The paint booth is a special environment for painting operations, which can meet the requirements of temperature, humidity, illumination, air cleanliness and other requirements for painting operations; It is an environmentally friendly coating equipment that restricts and treats the paint mist and organic waste gas generated during painting work, and discharges them.
Military Paint Booth
Artillery shells, tanks, rockets coating line is widely used in the military manufacturing industry, the coating line process and equipment for different military products may vary to suit different models and market demand. Coating line is an important part of the manufacturing process, mainly for external parts to be coated, in order to make the appearance of military products more beautiful, corrosion and oxidation resistance.
Industrial Coating Production Lines
Higher standards are required for the design of the construction machinery coating production line because businesses are prioritizing lower manufacturing costs and better product quality in response to the growing competition in the construction machinery sector. Structures of construction machinery with relatively large external dimensions must have their suspension height adjusted during the coating process to satisfy spraying requirements. This necessitates the use of a self-propelled hoist conveyor system for the conveyor of structural parts. Sandblasting and painting are the two most common processes used in construction machinery coating production lines. The equipment included in the coating line includes sandblasting, cleaning, paint spraying, and drying rooms. The number of equipment configurations varies depending on the needs of the process.

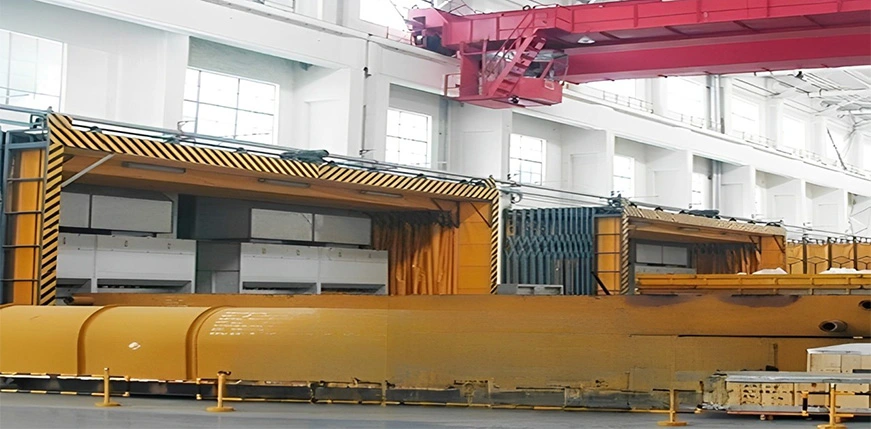

Portable Spray Booth
When in use, the telescopic paint spray booth can automatically unfold to create a closed or semi-colsed painting space. When not in use, it can shrink and fold into a single location. This environmentally friendly painting equipment is useful for a variety of tasks, but it works best when painting larger workpieces.
Blasting Room
The operator stays in the room throughout the sand removal operation, which is the primary characteristic of the sand blasting chamber. The operator is shielded from abrasive shock by protective clothes and a helmet, and ventilation allows fresh air to enter the helmet. Large or expensive parts are typically handled in sandblasting rooms using automated sandblasting equipment. The parts' surfaces can be automatically sandblasted by the nozzle manipulator that is placed in the sandblasting room. Manual sandblasting can be used to finish the portions that are too small for the automatic sandblaster. This keeps things flexible and lowers the need for sandblasting operators.

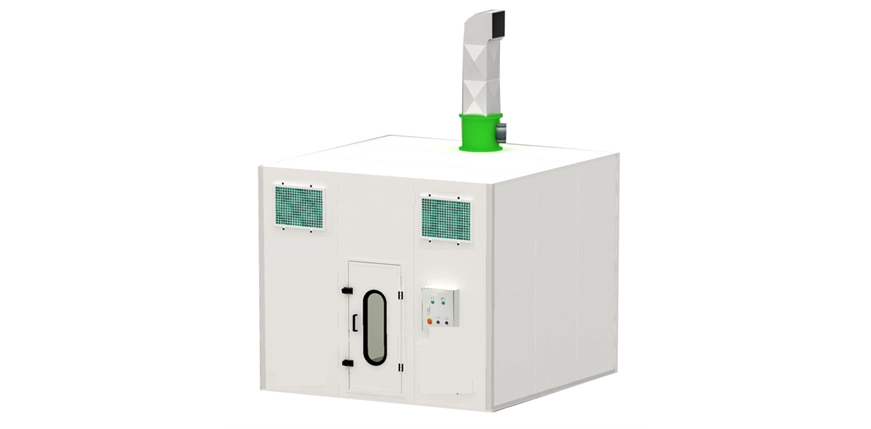

Paint Mixing Room
Primarily utilized for painting, the paint mixing room provides an exclusive workspace. Painting and other related industries are essential to the production and maintenance of automobiles. The safety and environmental quality of the paint-mixing room are necessary due to the growth of the social economy and the enhancement of consumer quality.

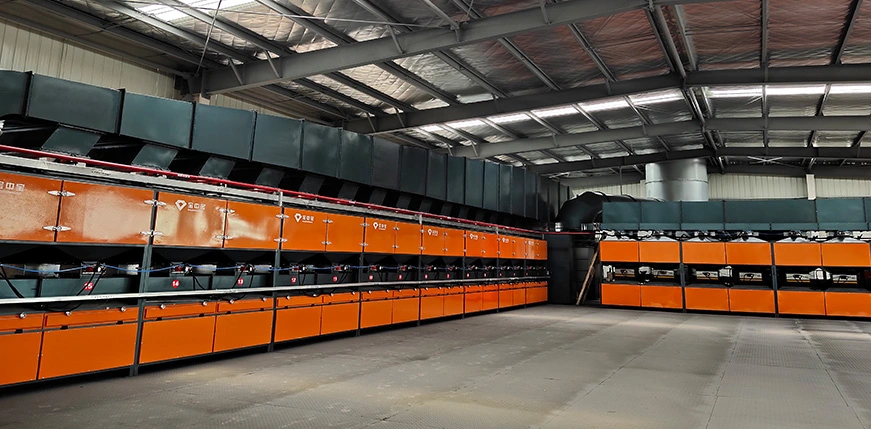

Exhaust Treatment System
The issue of wastewater pollution caused by steam desorption is entirely resolved by the series activated carbon adsorption-catalytic combustion integrated waste gas treatment device, which leverages the thermal energy of the catalytic combustion reaction to desorb VOCs adsorbed by activated carbon. Currently, this method is acknowledged as a mature procedure for handling organic waste gas with a large air volume and low to medium concentration.

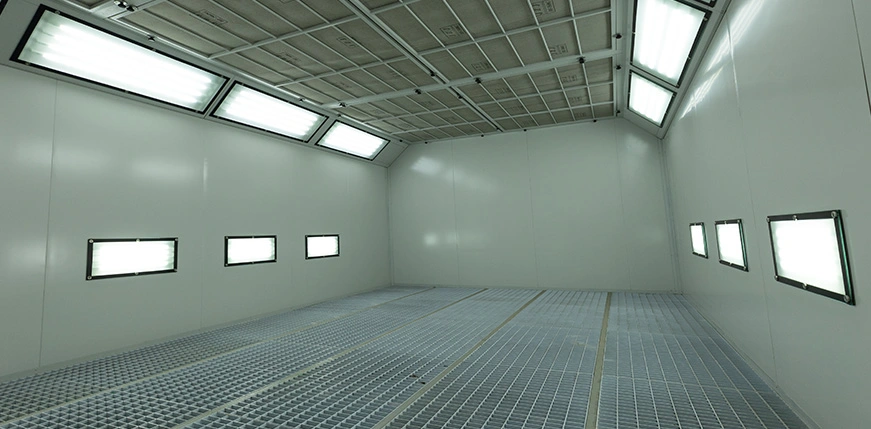

Spray Booth Consumables
Fiberglass Paint Arrestor Paint Booth Floor Filter Paint Stop Filter by 90-100MM Or 50-60MM Thickness: These series offer excellent dust-holding and recovering capabilities and are primarily utilized in premium mist filtering of surface painting.
/
Industries
JingzhongJing (JZJ) Group provides industry-leading spray booths and finishing equipment for a wide variety of industries, including aerospace, automotive refinish, commercial vehicles, large parts and equipment, marine and yacht, woodworking, and industrial manufacturing. Our spray booths and finishing equipment are expertly designed for superior performance and longevity.

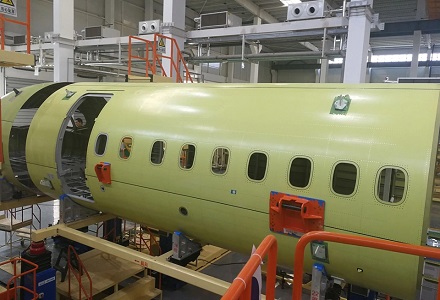

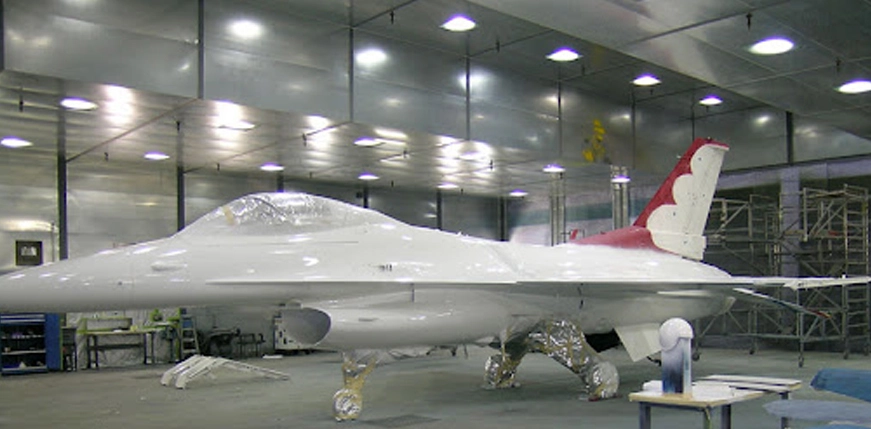

Paint Booth/Paint Line in Aerospace/Aircraft
With the development of aviation industry, aircraft, as the main means of transportation of people and goods, has attracted more and more attention. In order to make the aircraft in the appearance and safety requirements, aircraft painting has become increasingly important.

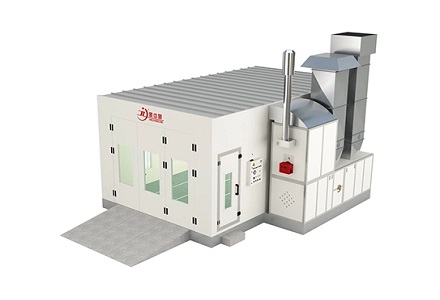

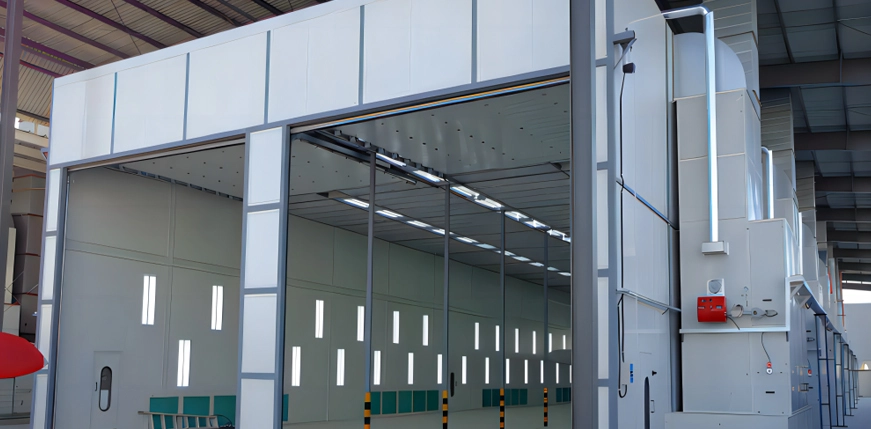

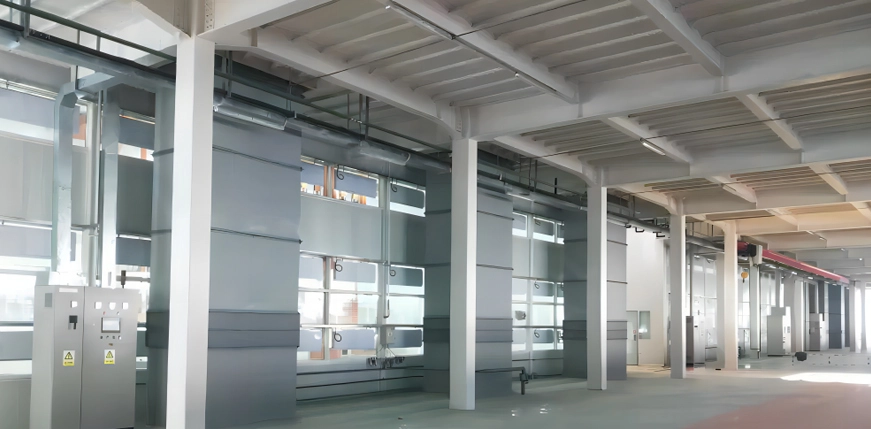

Paint Booth/Paint Line in Automotive
A car paint shop is usually used to spray and bake car paint. Nowadays, it is used to be called a car paint shop. A paint shop, just as its name suggests, is a room where the objects of the filter paint are sprayed, now also known as the Paint Shop, the traditional spray paint is in the open air with the nozzle to appliances, cars, furniture, etc. , spray paint, but this way for large appliances will make spray paint quality.

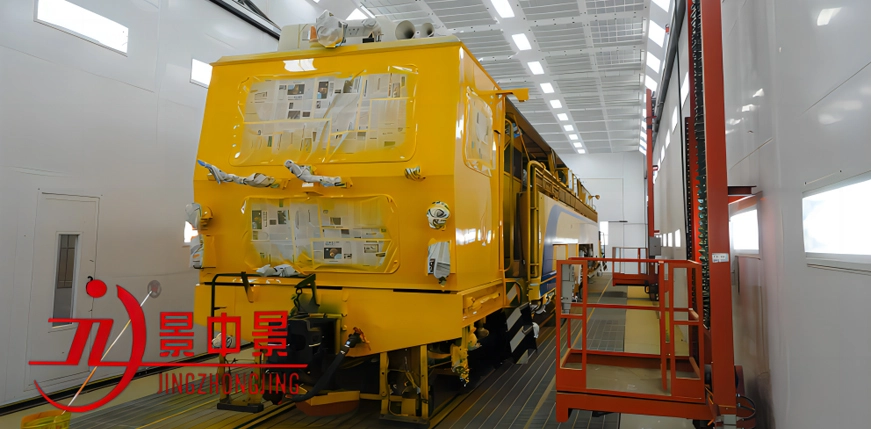

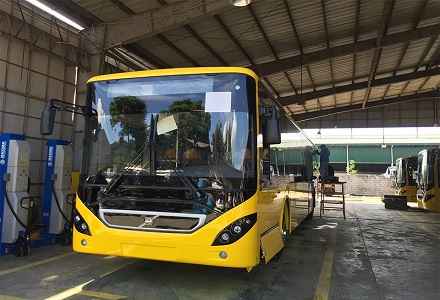

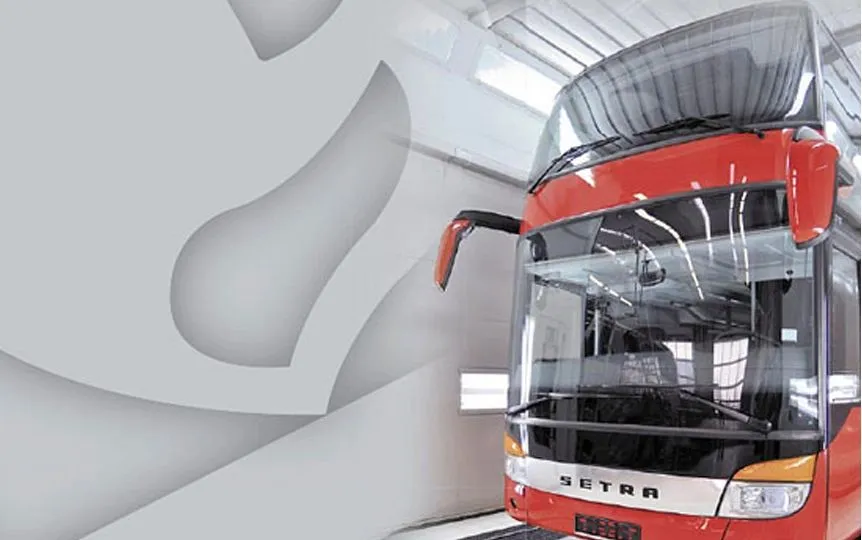

Paint Booth/Paint Line in Commercial Vehicles & Semis
With the development of cities, more and more cities are building rail transit, such as Subway, urban rail, high-speed rail, etc. , it greatly improves the service life and shelf life of rail vehicles, long-term protection of objects, to prevent chemical corrosion, climate impact, chemical impact, etc. For example, in acid rain, high temperature exposure, large temperature differences in the climate, have played a very good role in protection.

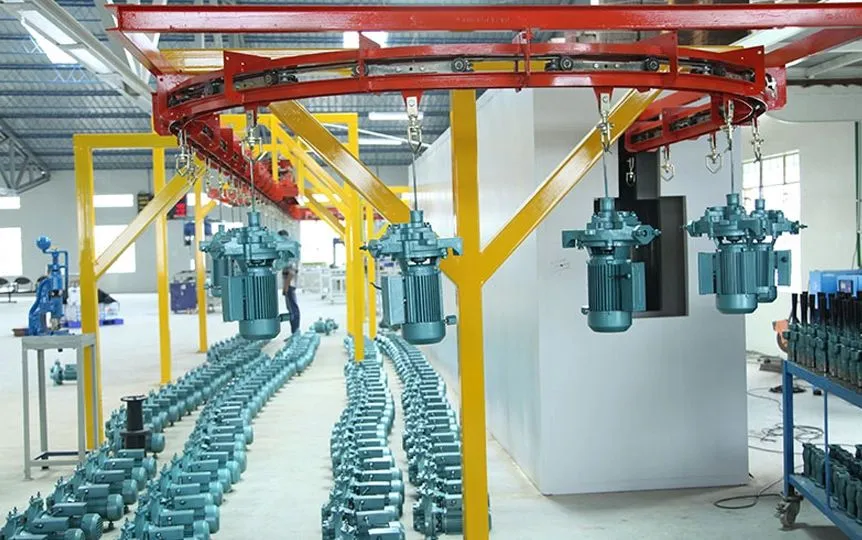

Paint Booth/Paint Line in Industrial Manufacturing
Our in-house engineering group custom builds each painting line for a project to ensure optimal efficiency and durability over a lengthy period of time. We can customise our solutions for any work, therefore we can offer everything from fully automated lines to manual lines.

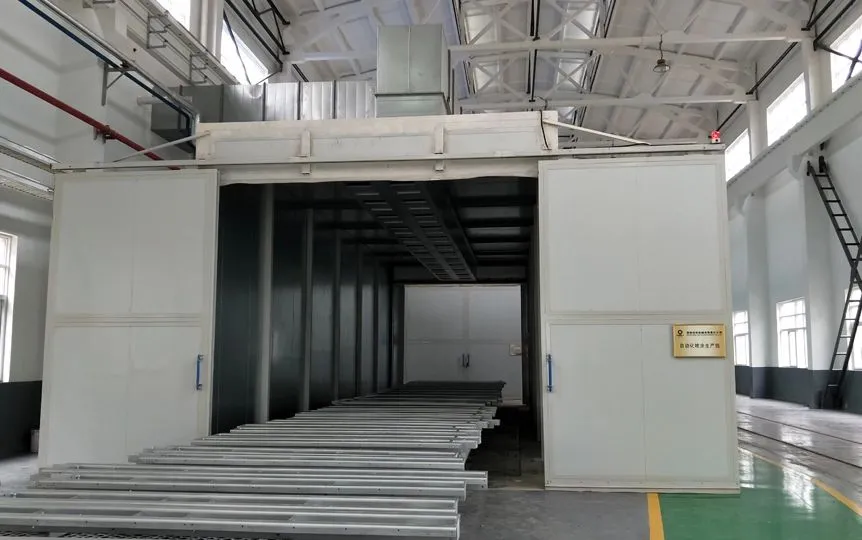

Paint Booth/Paint Line in Large Parts & Equipment
Metal products industry, such as steel, aluminum industry, need large-scale spraying equipment for large-scale metal plates, pipelines, tanks and other coating. Spraying equipment can provide uniform coating, enhance the corrosion resistance and wear resistance of metal products.

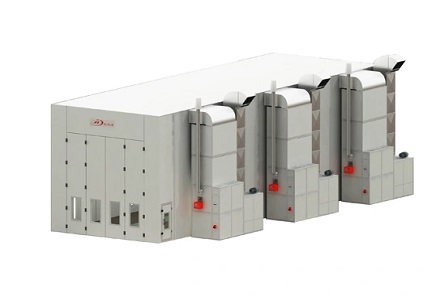

Paint Booth/Paint Line in Marine & Yacht
Ships need-use in the marine environment, and the marine corrosion is very serious, so ships need to do a good job of anti-corrosion treatment, ships in the production process, need to steel surface spray anti-corrosion paint, so that the ship can be used for a long time.
Paint Booth/Paint Line in Woodworking
The painting of craft furniture is a kind of painting which is suitable for furniture. Its painting features mainly embody retro and returning to nature, fully showing the natural color of wood, it is a trend of furniture development in the future.
Industries
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd. is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng City, Jiangsu Province. We have a plant area of 99000 m2 in a garden-style industrial zone. We have a staff of 260, including 20 engineers with 15 years of design experience. Our annual production capacity can reach 2,500 sets of paint booths. Our products are JZJ Brand spray booths, sandblasting booths, shot blasting machines, etc. We have passed ISO9001 and EU CE, and the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia, etc. Our products are well-known in the industrial fields of automobiles, aviation, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
View More
paint booth manufacturers
2
2 top welding certificates: EN15085-CL1, AWS
15
15 years specialized in laser cutting, sheet metal, and welding
30
Service for more than 30 countries across the world
500
Completed more than 500 projects
10000
Serviced for more than 10,000 running Metro Subways and High-speed Trains
3000-20000
3000W-20000W high power laser cutting machines
Jingzhongjing Paint Spray Booth Certification

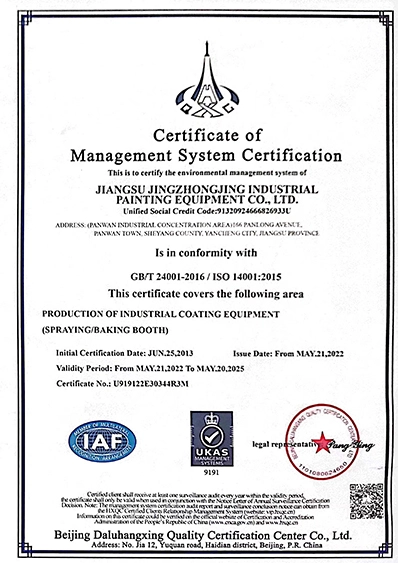

certificate of management system certification 2022
certificate of management system certification 2019

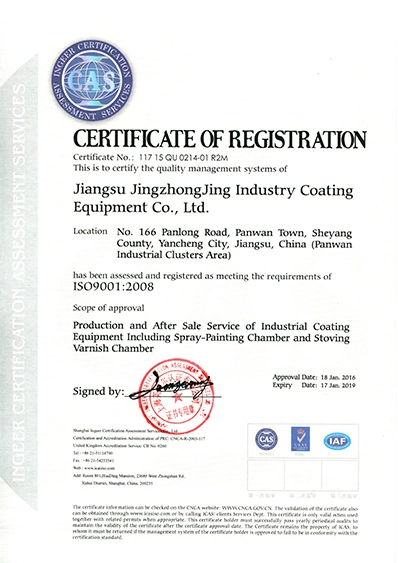

certificate of registration
certificate of machinery directive

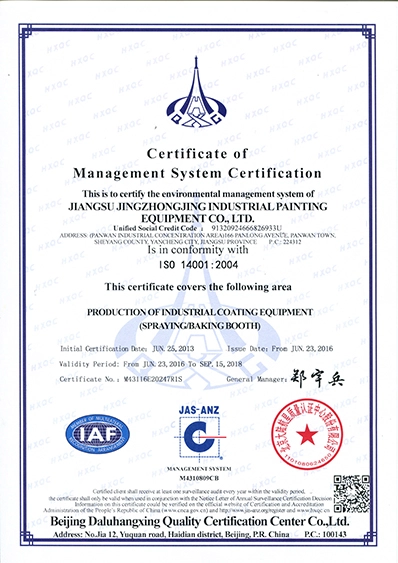

certificate of management system certification
