JZJ Spray Booth Catalouge with Model JZJ-FB-12 | |||
Outside Dimension (mm) | 12146*6200*4600(L*W*H) | Inside Dimension(mm) | 12000*4500*4000(L*W*H) |
Front Door(mm) | 3300*3800(W*H) | Service Door (mm) | 800*2000(W*H)*2 |
Total Power | 35KW | ||
Cabin Dystem | Wall panel | 70mm EPS sandwich panel, steel sheet thickness: 0.6mm | |
Ceiling panel | 0.8mm galvanized steel sheet. | ||
Basement | Dig 2 rows of pits basement | ||
Glass | 5mm safety tempered glass | ||
Air Make-up System | Air inlet fan system | 4*5.5kw centrifugal fan | |
Exhausted fan system | 2*11kw belt drive centrifugal fan | ||
Air capacity for fresh air | 60000m3/h | ||
Air capacity for exhausted air | 58000 m3/h*2 | ||
Air flowing speed | 0.28m/s in empty booth | ||
Air control method | Air inlet system and exhausted system, each with 1 manual damper | ||
Exhausted ducting | Each exhaust fan with 1*6 meters straight ducting, one 90°elbow and one 45°elbow. | ||
Purification System | Pre-filter | G3 grade | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | M green fiber glass filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner: | 2sets Riello G20 diesel burner | ||
Heating productivity | 180000Kcal/h*2 | ||
Spray to baking switch | 20N BELIMO brand electrical damper | ||
Chimney ducting | Each heating system with 1* 6 meters stainless ducting and one chimney elbow | ||
Max heating temperature | 80℃ | ||
fuel consumption | 10-12L/vehicle | ||
Lighting System | Ceiling lights | 16Units, each 4 x 18W LED lamps ,Total 1152W | |
Side lights | 16Units, each 2 X18W LED lamps, Total 576W | ||
Illumination | 900LUX | ||

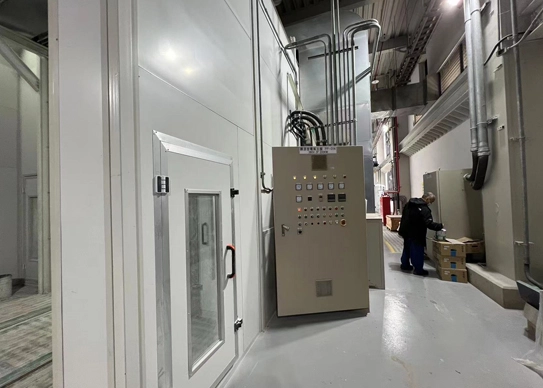

Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | |
| JZJ Spray Booth Catalouge with Model JZJ-FB-18 | ||||
Outside Dimension (mm) | 18156*6906*5800(L*W*H) | Inside Dimension(mm) | 18000*5000*5000(L*W*H) | |
Front Door(mm) | 4000*4500(W*H) 4 folds | Service Door (mm) | 800*2000(W*H)*2 | |
Total Power | 105KW | |||
Cabin System | Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.6mm | ||
Ceiling panel | 50mm rock-wool sandwich panel | |||
Basement | Dig 2 row of pits basement | |||
Windows | 5mm safety tempered glass | |||
Air Make-up System | Air inlet fan system | 6*7.5kw centrifugal fan | ||
Exhaust fan system | 3*18.5kw belt drive centrifugal fan | |||
Total air inlet capacity | 108000m3/h | |||
Total air exhaust capacity | 105000m3/h | |||
Air capacity control | Air inlet system and exhausted system, each with 1 manual damper | |||
Exhaust duct | Each exhaust fan with 1*6 meters straight ducting, one 90°elbow and one 45°elbow. | |||
Purification System | Pre-filter | G3 grade | ||
Ceiling filter | EU5 / F5 | |||
Floor filter | Green fiber glass filter / G3 grade | |||
Exhausted fan filters | Fiber glass filter and active carbon | |||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||
Heating burner: | 3sets Riello RG5S diesel burner | |||
Heating productivity | 260000Kcal/h*3 | |||
Spray to baking switch | 20N BELIMO brand electrical damper | |||
Chimney ducting | Each heating system with 1* 6 meters stainless ducting and one chimney elbow | |||
Max heating temperature | 80℃ | |||
Fuel consumption | 10-15L/vehicle | |||
Lighting System | Ceiling lights | 24 Units, each 4 * 18W LED lamps. Total 1728 W | ||
Side lights | 24 Units, each 2 * 18W LED lamps. Total 864 W | |||
Illumination | 900LUX | |||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | ||

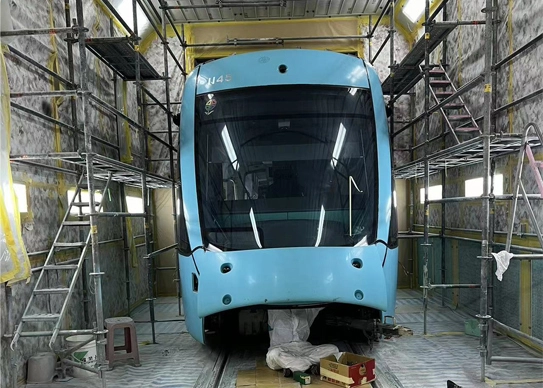

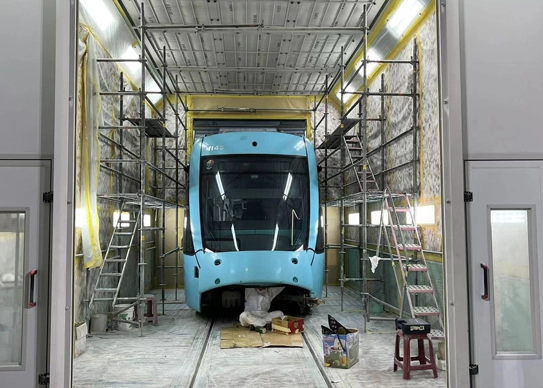

Extended Length and Height: Designed to accommodate the full length and height of train carriages, ensuring comprehensive coverage.
High Airflow Systems: Equipped with powerful ventilation to manage large volumes of air, maintaining optimal painting conditions.
Durable Construction: Built with robust materials to withstand the rigors of industrial use and frequent maintenance cycles.
