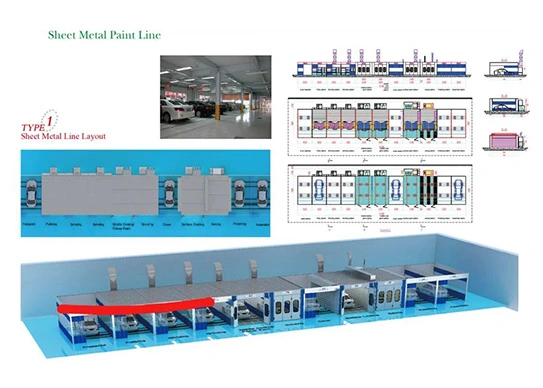

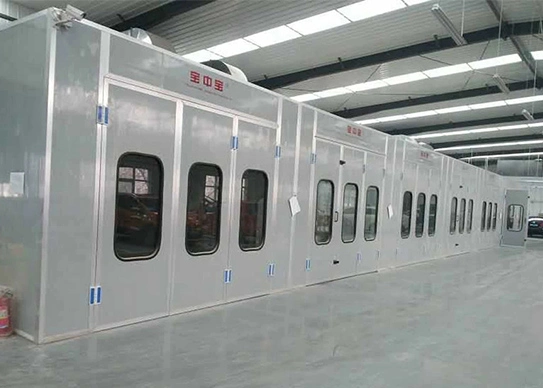

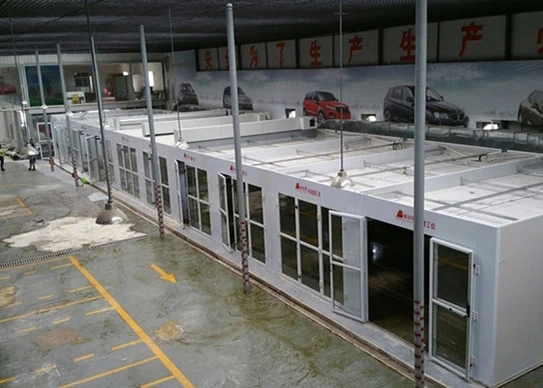

Auto Sheet Metal Paint Line

No.

Item Name/
Main Function

Main Specification

price(Talkable)

1

Awaiting Repaired/ Metal Sheet Disassemble
(Be a Prepared Cars area, can also do the body correction at this area.)

Station size: 7500×4000×3000 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel.

2

Puttying
(Be an old coating polish and putty station.)

1. Station size: 7000×3550×3100 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel.

B. 10 units*4pcs=40pcs 36W Lamp; Ballasts Professional and durable.
C. With roof air plenum, side wall exhaust, one set 5.5KW exhaust fan. With electric adjustable damper to control airflow volume.

6

Surface Coating
(Paint spraying operations, no load air speed at 0.5m/s.
Fan Brand: Guangdong Detong.)

1. Inside size 6900×4000×2650 mm (L×W×H)

2. Cabin is 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive.

C. Ceiling with 5 units*4pcs=20pcs 36W Lamp, Ballasts Professional and durable.
D. With roof air plenum, down ground, full grids, need using spray gun.
E. 2 sets 9KW intake fan, total intake air capacity 48000m3/h, one set 15KW exhaust fan, total exhaust air capacity 42000m3/h, motor outside, belt drive.

3

Putty Polishing
(Be a polish station. Match  Sanders with dust extraction usage.)

A. Inside size 6900×3450×2650 mm (L×W×H), Three sides with PVC curtain, back wall 50mm thick EPS panel.
B. 10 units*4pcs=40pcs 36W Lamp; Ballasts Professional and durable.
C. With roof air plenum, side wall exhaust, one set 5.5KW exhaust fan. With electric adjustable damper to control airflow volume.

4

Sanding Middle Coat and Primer Paint
(Be a Primer Paint and Primer Paint baking station. With intake and exhaust system and paint mist treatment system. Fan Brand: Guangdong Detong.)

A. Inside size 6900×4000×2650 mm (L×W×H), front equipped one set main door, two sides door opening with PVC curtain, back wall 50mm thick EPS panel.
B. 10 units*4pcs=40pcs 36W Lamp; Ballasts Professional and durable.
C. With roof air plenum, side wall exhaust, need using spray gun, and infrared lamp to bake the Primer Paint.
D. One set 5.5KW intake fan, one set 5.5KW exhaust fan, model TAE-450H, air capacity 15000m3/h, belt drive. With manual damper, to control airflow volume.

5

Clean and Cover
(Be as a Clean and Cover station.)

Inside size 6900×3550×3100 mm (L×W×H), front and back sides are curtain, bottom and ceiling with 5 units*4pcs=20pcs 36W Lamp; Ballasts Professional and durable.

6

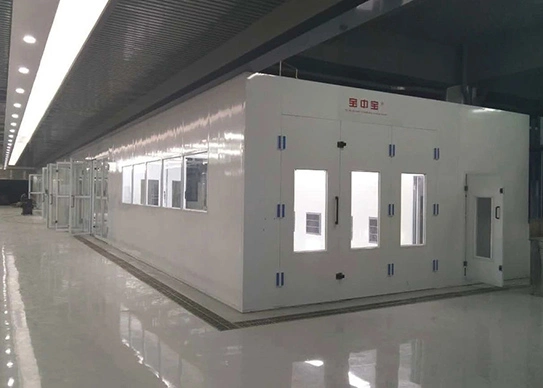

Surface Coating
(Paint spraying operations, no load air speed at 0.5m/s.
Fan Brand: Guangdong Detong.)

1. Inside size 6900×4000×2650 mm (L×W×H)

2. Cabin is 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive.

C. Ceiling with 5 units*4pcs=20pcs 36W Lamp, Ballasts Professional and durable.
D. With roof air plenum, down ground, full grids, need using spray gun.
E. 2 sets 9KW intake fan, total intake air capacity 48000m3/h, one set 15KW exhaust fan, total exhaust air capacity 42000m3/h, motor outside, belt drive.

8

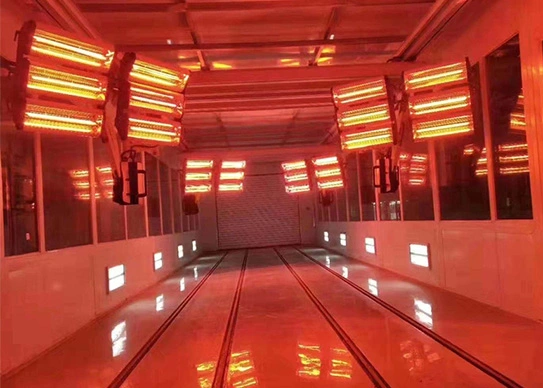

Baking
(Diesel burner matching infrared lamp does the sectional repair, oil and electric dual purpose.
Fan Brand: Guangdong Detong.)

A. Inside size 6900×4000×2650 mm (L×W×H), cabin using 50mm thick double 0.476mm colorful steel skin rockwool panel, front equipped one set main door, two sides door opening with 2 sets rolling curtain, electric drive.
B. Ceiling with 5 units*4pcs=20pcs 36W Lamp; Ballasts Professional and durable.

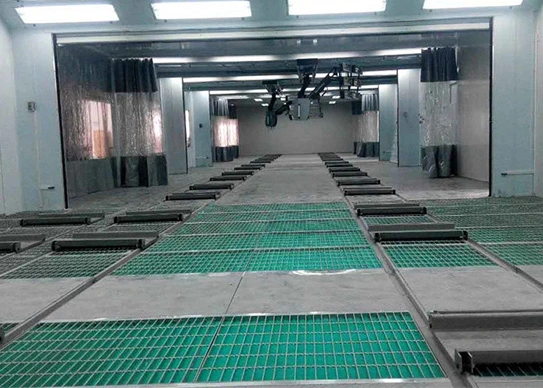

C. With roof air plenum, down ground, 2 rows of grids and 3 rows of embossed plate.

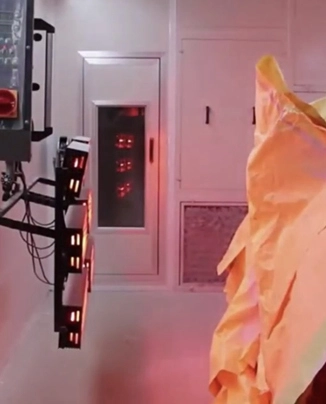

D. Equipped one set suspended ceiling infrared lamp, total 6KW, and equipped with one set G20 oil burner, oil and electric dual purpose.
E. One set 5.5KW circulating fan, model TAE-450H, air capacity 15000m3/h, motor outside, belt drive.

9

Polish/ Assembly

Station inside 7000×3550 mm, ceiling cover frame, three sides with PVC curtain, back wall 50mm thick EPS panel.

10

Electric rolling door

Side door opening with 3 sets rolling curtain, electric drive.

11

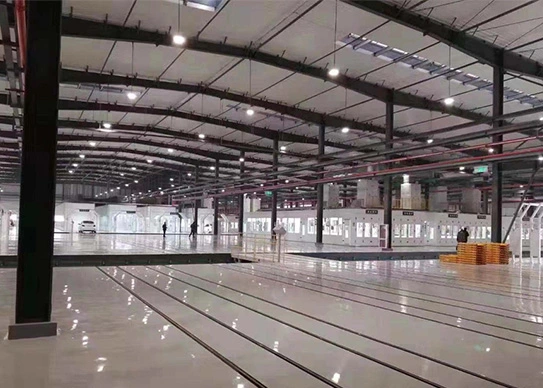

Track
(Cars translational on the assembly line.)

Track per row 37m, equipped 6 rows crosswise track, total 296 meters, movable trolley.

12

Trolley
(Cars translational on the assembly line.)

Total 10 stations, equipped 44 sets trolley with brake system.
