Painting room is a kind of equipment specially used for car painting and baking, also known as car painting room. The equipment adopts mechanical control, can save space, is convenient to use, can be forced to dry the primer,top paint,speed up the rhythm of work, improve work efficiency and coating quality. The advantages of car painting room include early processing fast, effect is better, good working environment,high efficiency,quality assurance and high safety factor. Compared with the traditional method of automobile painting, car spray booth not only improves work efficiency and coating quality,also provides a good working environment,reduces the influence of human factors on the quality of paint, ensures the health and safety of operators at the same time. In addition, car spray painting room is also equipped with filter device and ventilation system, to keep the air in the room clean,to prevent external dust and other pollutants to pollute the car paint.

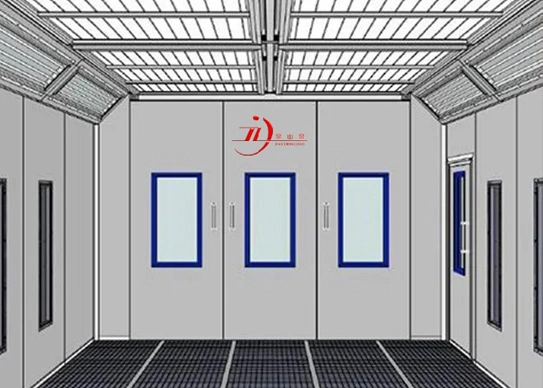

Booth Dimension | |
Internal Dimension | 6900×4000×2650mm (L×W×H) |
Foundation and Floor | |
Loading Capacity of Galvanized Grating | 700kg/wheel |
Surface Area | 32m² (full grating) |
Metal Basement | 350mm in height |
Ramps | 3 units, each 2000mm in length |
Wall and Door of America Standard Car Spray Booth | |
Wallboard & Roof Panel | The wallboard of the car spray booth with tongue and groove interlocking system is made of two pieces of galvanized steel sheet with rock wool insulation layer. PU insulation layer is optional. The total thickness of the wallboard for the industrial painting equipment is 50mm. |

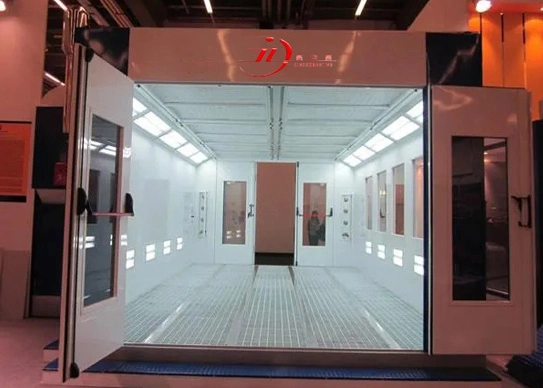

3-folded Entrance Door with Safety Glass | 1 unit, 3000×2800mm (W×H), hanger rail |
Operator’s Door with Safety Glass Window | 1 unit, 800×2000mm (W×H) |
Lighting System of Car Spray Booth | |
Ceiling Light | 8 pieces of 4×54W T5 lamps, total 1728W, IP54 |
Side Lights | 6 pieces of 4×54W T5 lamps, total 1296W, IP54 |
Light Intensity | >1200Lux |
Filtration | |
Prefilter | Fiberglass, double filters |
Ceiling Filters | EU5 fine filters, 6 units |
Floor Filters | Fiberglass, paint-stop1-filters |

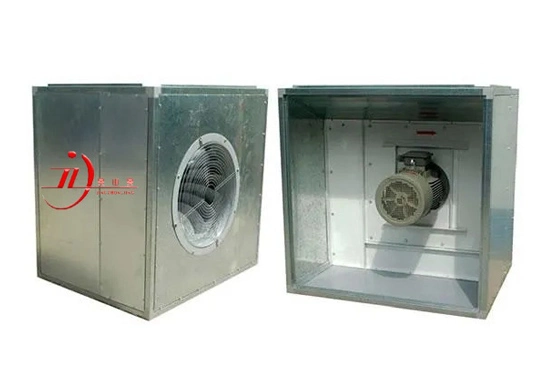

Ventilation System | |
Direct Drive Motor (Fresh Air) | 1×11kW, 970rpm, 480V, 60Hz, 3-phase, America NEMA compliant Motor (CSA certified) |
Direct Drive Motor (Exhaust Air) | 1×11kW, 970rpm, 480V, 60Hz, 3-phase, America NEMA compliant motor(CSA certified) |
Air Capacity | 30,000m³/h |
Air Velocity | ±0.3m/s in empty booth |
Water-based System of Car Spray Booth | |
Size | 500×500×400mm (L×W×H) |
Internal Recycle Fan Motor | 2×1.5kW, 1390rpm, 208V, 60Hz, CE compliant |
Air Capacity | 3,000m³/h |

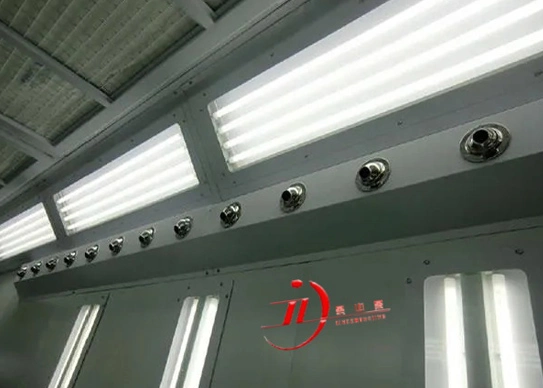

Nozzles | 2×24pcs, installed on the left and right light boxes. |
Heating System – America Midco Direct Fired Heating | |
Control Board of Car Painting Booth | |
Standard | European standard, star-delta starter |
Function | Spray & stoving switch, light switch, emergency stop, failure warning, etc. |
PLC | Yes |
Overpressure Manometer | Yes |
Safety Thermostat for Heating and Ventilator | Yes |
