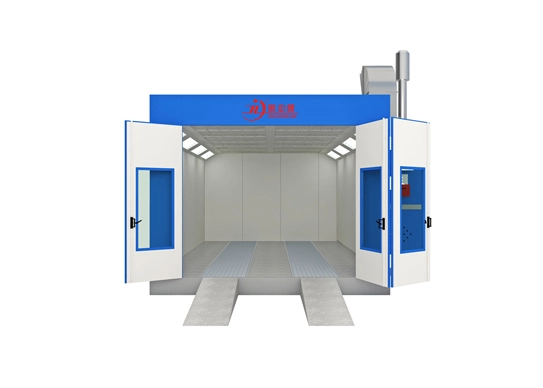

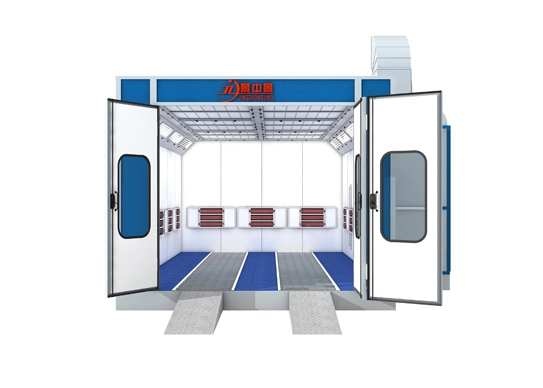

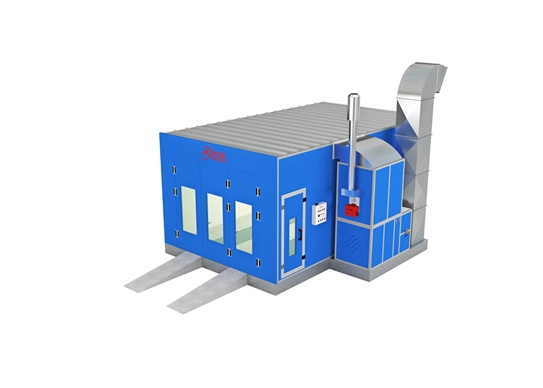

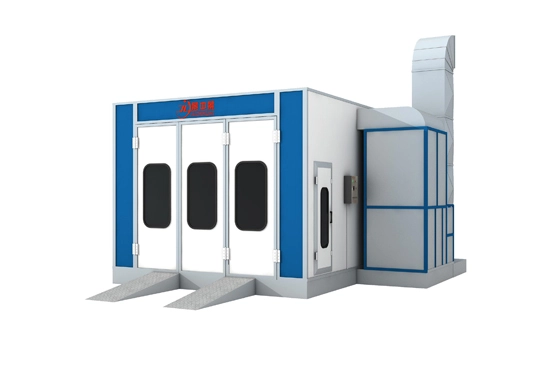

Our advanced metal powder coating line is a specialized closed space designed for superior surface treatment of metal parts. The metal powder coating line's innovative design and functionality provide an optimally clean working environment, ensuring maximum efficiency and quality in the coating process. With dual capabilities for powder coating and drying, this metal powder coating line for sale features exceptional ventilation efficiency and airtight construction, effectively collecting and treating exhaust gases to minimize environmental impact while delivering professional finishing results.
| Metal Fabrication Paint Line | |||
Outside Dimension (mm) | 7006*5460*3420(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 9KW | Total Weight(Ton) | 3.8 |
Cabin System | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
Ceiling panel | 0.8mm galvanized steel sheet. | ||
Ramps | Two pieces 2000*600mm ramps | ||
Basement | 300mm depth, two rows grids and three rows checkered plates. | ||
Glass | 5mm safety tempered glass | ||
Windows | Square glass windows | ||
Air Make-up System | Air inlet fan system | 1*7.5kw turbo fan | |
Exhausted fan system | For option | ||
Air capacity | 22000m3/h | ||
Exhausted ducting | 4 meters straight ducting, one 90°elbow and one 45°elbow. | ||
Purification System | Pre-filter | G3 grade | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | Fiber glass filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner | BT14 diesel burner | ||
Heating productivity | 140000Kcal/h | ||
Spray to baking switch | Pneumatic damper | ||
Chimney ducting | 3 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
fuel consumption | 6-8L/vehicle | ||
Lighting System | Ceiling lights | 8 Units, each 4 * 18W LED lamps. Total 576 W | |
Side lights | For option | ||
Illumination | 800LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm | |
High-precision application for complex metal shapes, ensuring detailed finishes.
Automated systems ensure consistent quality and efficiency, reducing labor costs.
Includes pre-treatment stages for optimal adhesion, enhancing durability.
Capable of handling large volumes with quick turnaround times, improving productivity.
