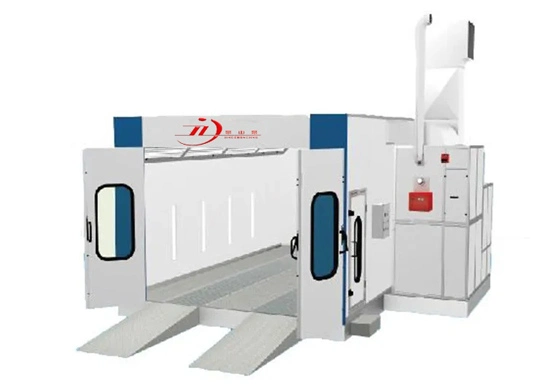

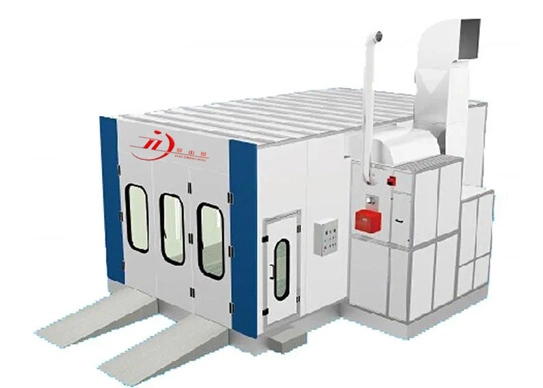

Paint booth is a specialised equipment for painting and baking of large vehicles such as buses, which is often referred to as automotive paint booth. This kind of equipment adopts mechanical control, which can significantly improve the efficiency of the spraying work and the quality of the paint surface, and at the same time has a good working environment and safety performance. It is suitable for all kinds of large parts, hardware, large automobiles, buses and other painting and baking, and is especially suitable for the painting and baking needs of large vehicles such as buses. Through its high efficiency, safety and environmental protection features, the bus spray booth provides great convenience for spraying paint on buses and other large vehicles, and is an indispensable equipment in the modern auto repair and beauty industry.
Air Circulation System
Inlet Fan | Model: YDW-4.5AL | Exhaust Fan | Model: YDW-4.5L |
Blower Capacity: 22000m3/h | Blower Capacity: 14000m3/h | ||
Pressure: 800Pa | Pressure: 800Pa | ||
Revolving Speed: 900rpm | Revolving Speed: 900rpm | ||
Power: 3kW | Power: 4kW | ||
Quantity: 2sets | Quantity: 1set |
One set automatic damper with 10N actuator
Generator
The generator is made of square steel frame and coated steel. The air supply and extraction is carried from the back of the generator.
Air Purification System
The air purification system of the car spray booth includes pre-filter, high-efficiency ceiling filter, and floor filter.
Heating System
Designed with SUS304 heat exchanger and RIELLO G20 diesel burner, the heating system of the car painting equipment offers maximum heating value up to 180000Kcal/h. Thanks to the electric actuator, the automatic changeover of paint spraying and curing can be realized. The heating process lasts about 5 to 7 minutes, with the maximum heating temperature of 80°C. The rate of oil consumption varies from 4kg to 6kg per set.
Lighting System
The lighting system of the car spray booth is capable of offering the light intensity over 1000Lux.
Ceiling light: 8 groups×4pcs=32pcs×36W
Side light: 4 groups×4pcs=16pcs×36W
Glass: transparent tempered glass
Control Box
The system is controlled by microcomputer program, offering the options such as lighting switch, car spraying control, paint curing switch, curing temperature control, time setting, failure indicator, temperature controller, emergency stop switch, breakdown alarm, etc.
Product Display

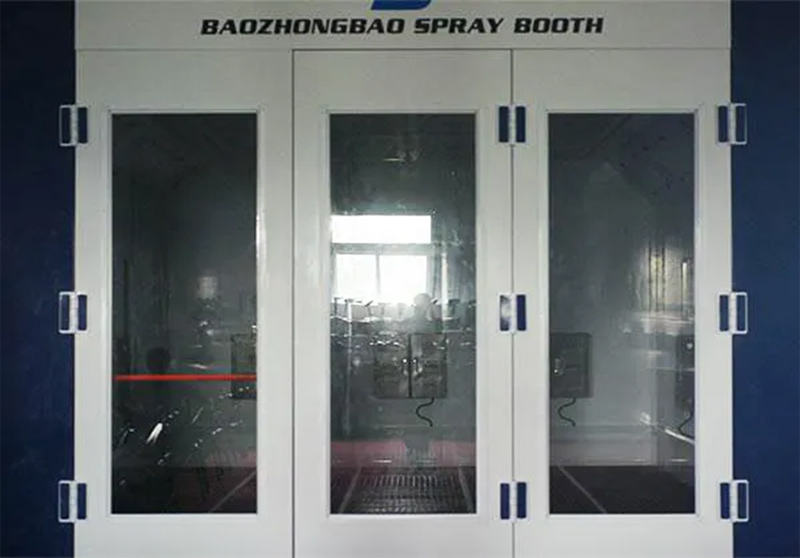

Steel metal front door (with tempered glass view windows)

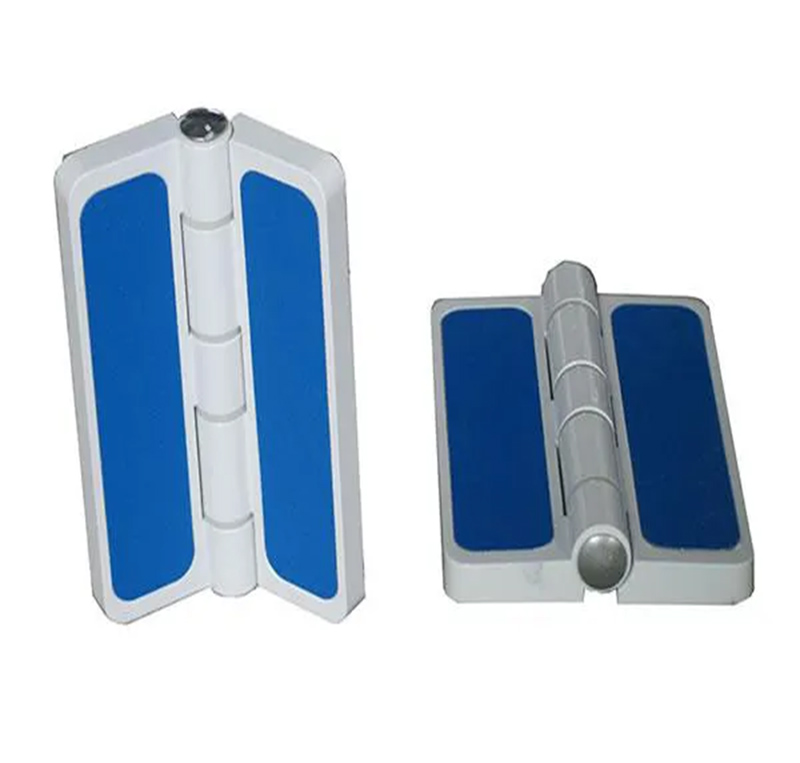

New style aluminum hinge

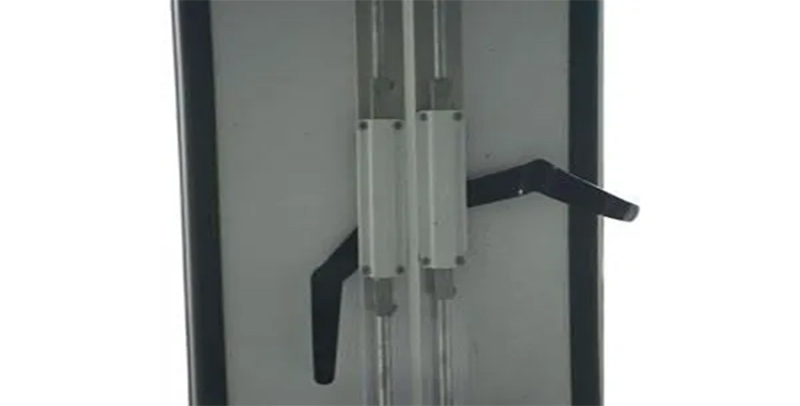

Door plug

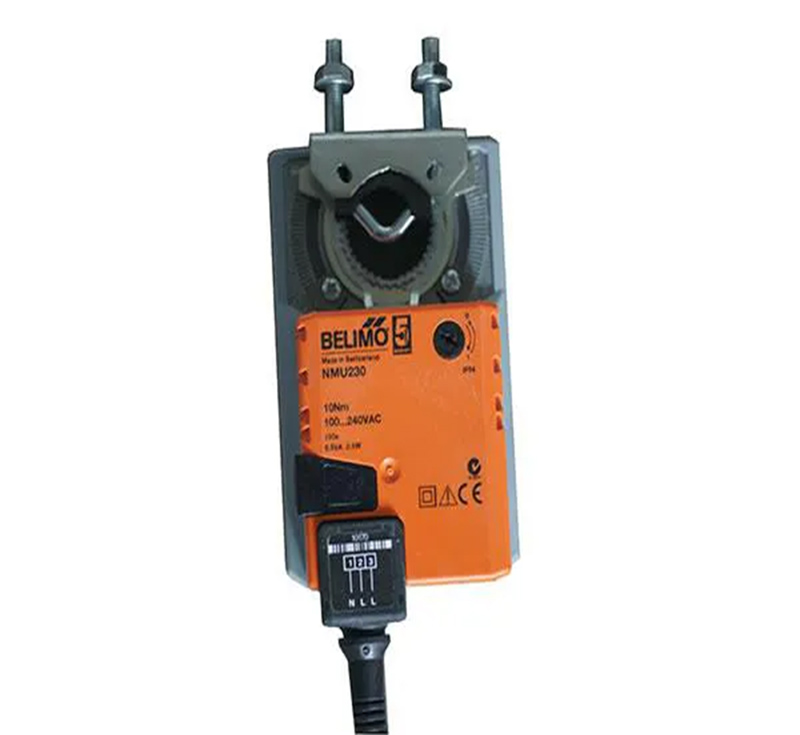

Belimo brand actuator

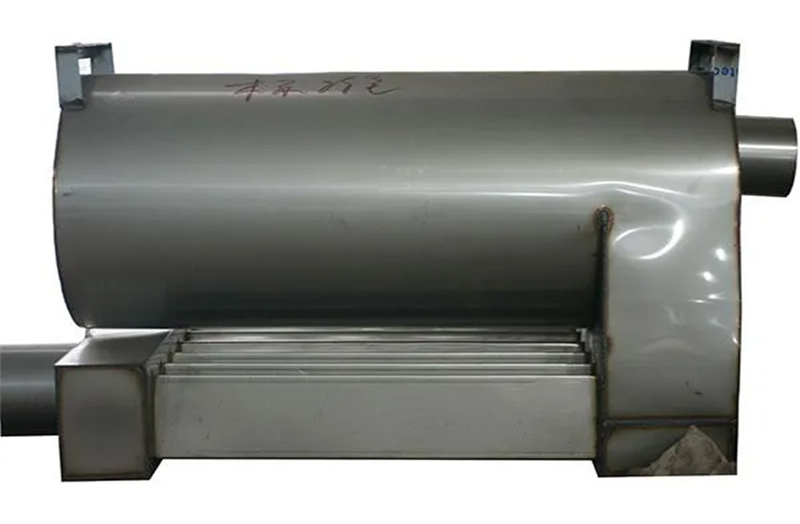

Heat exchanger (SUS304 galvanized steel)

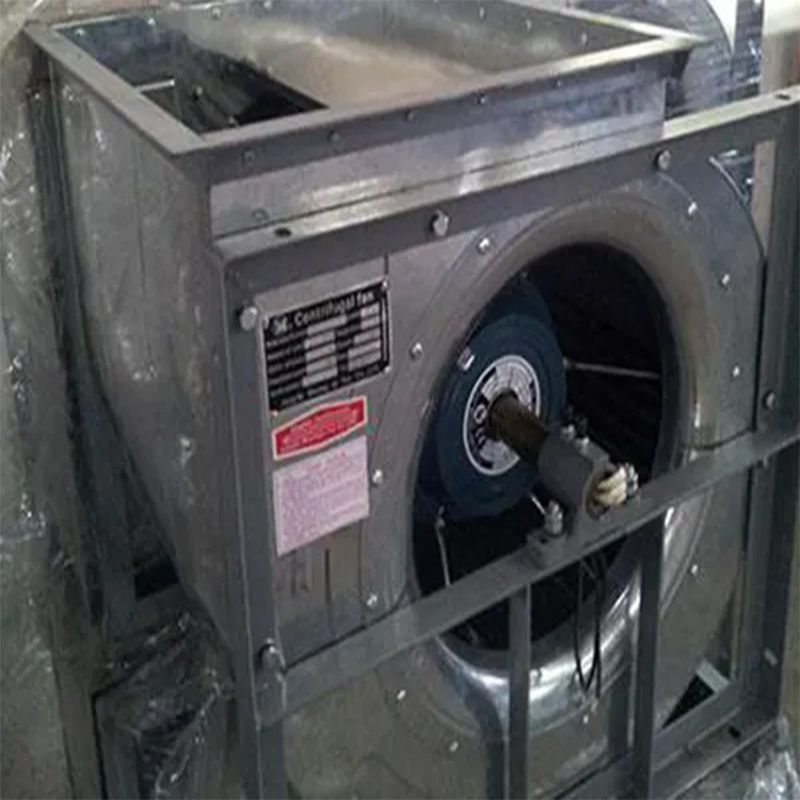

Centrifugal fans
It is vitally important for a company to maintain friendly relationship with distributors and dealers in order to provide considerate after-sales service to its client. Therefore, we particularly offer the following services to the distributors.
For each car spray booth, we will deliver 2 pieces of lamp, 2 rectifiers, 10 screws, 3-5 sheets along with the product, extra.
For special screw, hanger, light box sheet and some other small accessories easy to lose during installation, our warehouse worker will deliver 1-2 pieces more as the spare part.
As to the orders for 3-4 sets of standard car spray booth, JINGZHONGJING will present 1 piece of standard wallboard to our client.
1 set of door sealing strip for 50mm wallboard and 10 pieces of electronic rectifier for the distributors who order more than 6 sets of car painting equipment from us, quarterly.
For the distributors who purchase more than 12 sets of industrial spray booth from us within two quarters, we will offer 1 set of front door bolt, 1 programme control box, 5 pieces of hinges, and 5 pieces of handle.
1 set of actuator, 2 sets of door bolts, 10 pieces of hinges, 5 pieces of handle and temperature gauge with inductive probe for customers ordering 20 sets of car spray booth from us within 3 quarters.
Particularly, for the orders with the sale price 10% higher than the floor price, we will provide a reel of 1×20m fiberglass free of charge. As to the purchase order for more than 3 sets of thermal paint booth with the profit rate over 10%, we will present 1 set of roof filtering cotton.
We will communicate with our distributors with annual purchase amount up to RMB 2 million through Email quarterly to confirm if any support for the quick-wear parts for car spray booth is needed, such as 4kW centrifugal fan, door bolt, and some others.
