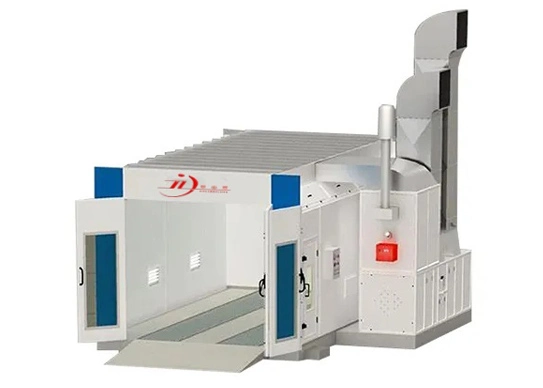

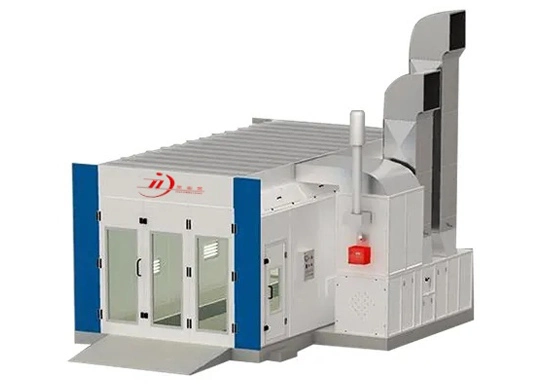

T8000AU Automotive Car spray painting bus truck Furniture Room Water Based Curtain Air Filter Ceiling Diesel Heating Paint booth China
Painting room is a kind of equipment specially used for car painting and baking, also known as car painting room. The equipment adopts mechanical control, can save space, is convenient to use, can be forced to dry the primer,top paint,speed up the rhythm of work, improve work efficiency and coating quality. The advantages of car painting room include early processing fast, effect is better, good working environment,high efficiency,quality assurance and high safety factor. Compared with the traditional method of automobile painting, car spray booth not only improves work efficiency and coating quality,also provides a good working environment,reduces the influence of human factors on the quality of paint, ensures the health and safety of operators at the same time. In addition, car spray painting room is also equipped with filter device and ventilation system, to keep the air in the room clean,to prevent external dust and other pollutants to pollute the car paint.
Air Circulation System
Inlet Fan | Model: BZB-800 | Exhaust Fan | Model: BZB-800 |
Blower Capacity: 25000m3/h | Blower Capacity: 25000m3/h | ||
Pressure: 800Pa | Pressure: 800Pa | ||
Revolving Speed: 900rpm | Revolving Speed: 900rpm | ||
Power: 7.5kW | Power: 7.5kW | ||
Quantity: 1set | Quantity: 1set |
Generator
The generator is made of square steel frame and coated steel. The air supply and extraction is carried from the back of the generator.
Air Purification System
The air purification of the car spray booth comprises G3 pre-filter, EU5/F5 ceiling filter, fiberglass or G3 floor filter, pocket filter or M green fiber glass filter and active carbon exhaust fan filter.
Heating System
The heating system of the automotive refinish paint booth contains SUS304 heat exchanger and RIELLO G20 diesel burner, offering maximum heating value up to 180000Kcal/h. The pneumatic damper can realize changeover of spraying and curing. With the maximum heating temperature of 80°C, the heating process lasts about 5 to 7 minutes. The rate of oil consumption varies from 4kg to 6kg per set.
Spray to curing switch: pneumatic damper
Chimney duct: 4 meters stainless ducting and 1 chimney hood
Spare Parts of Car Spray Booth

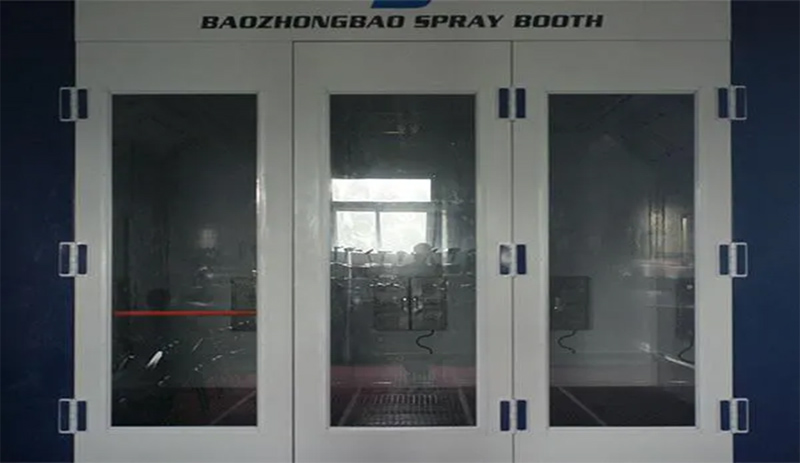

Steel metal front door (with tempered glass view windows)

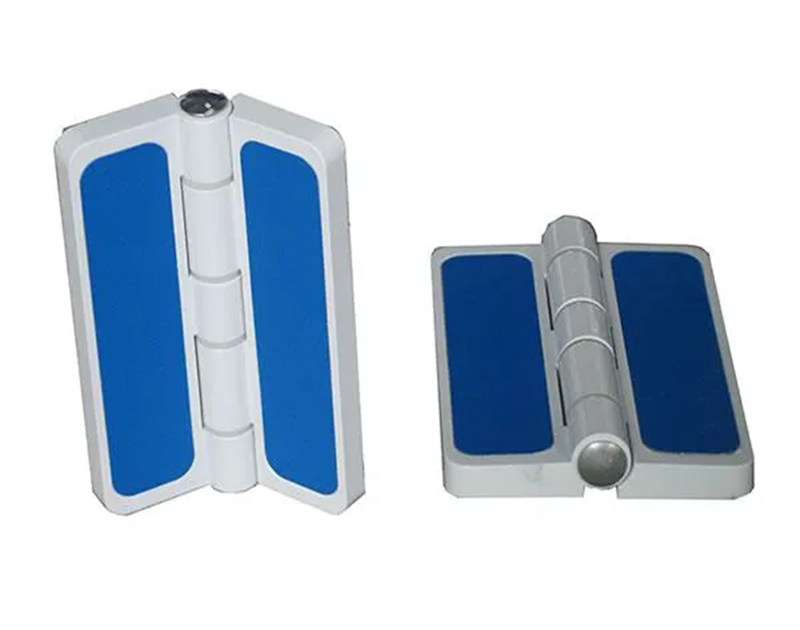

New style aluminum hinge

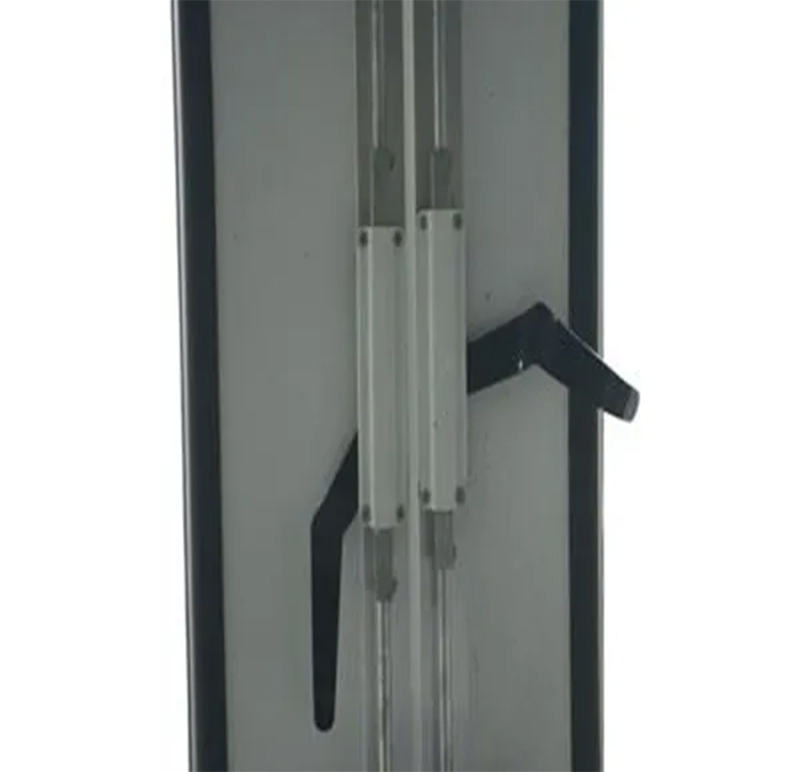

New door plug

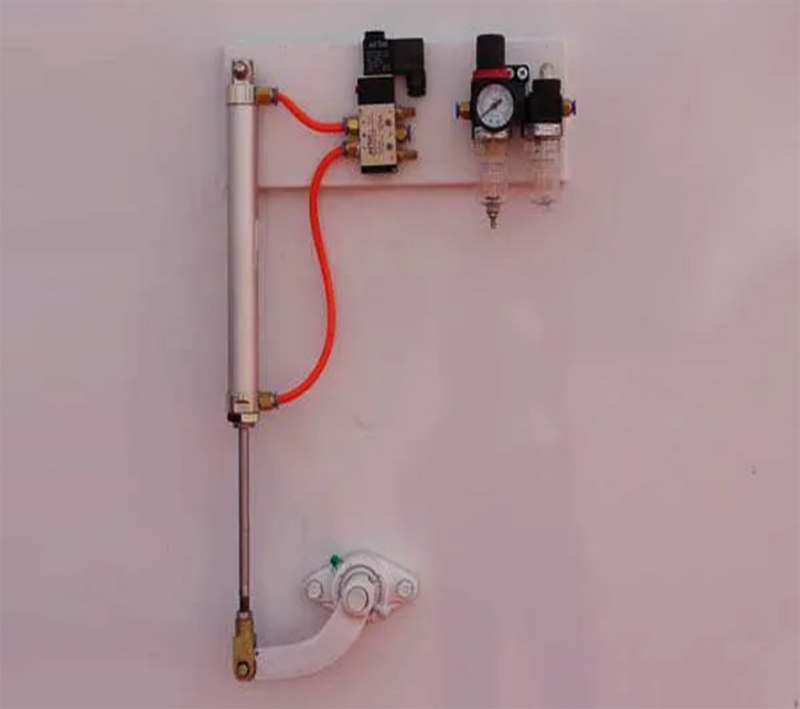

New style pneumatic damper

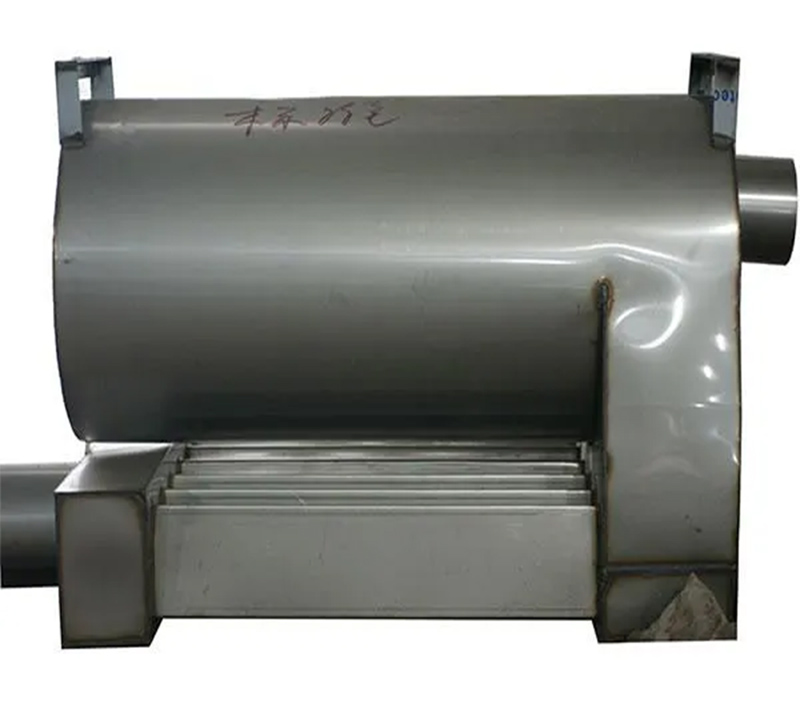

Heat exchanger (SUS304 galvanized steel)

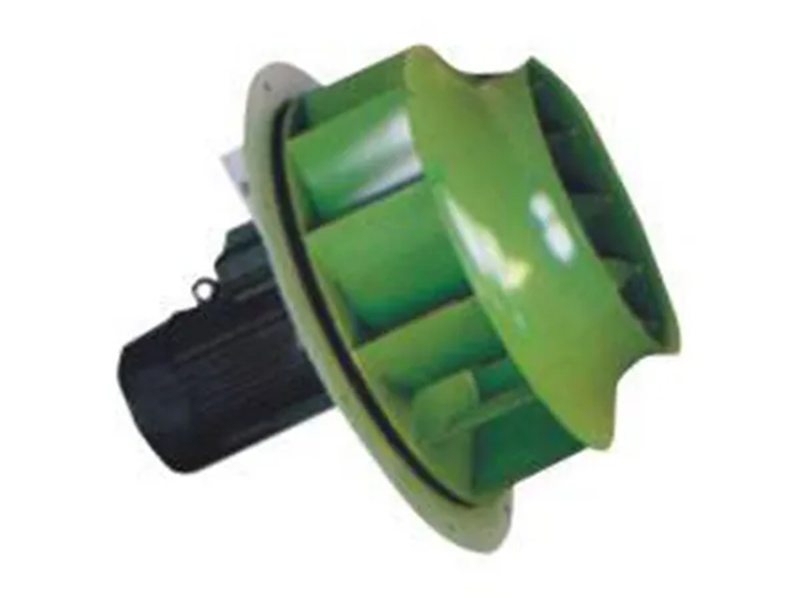

Direct drive motor fan

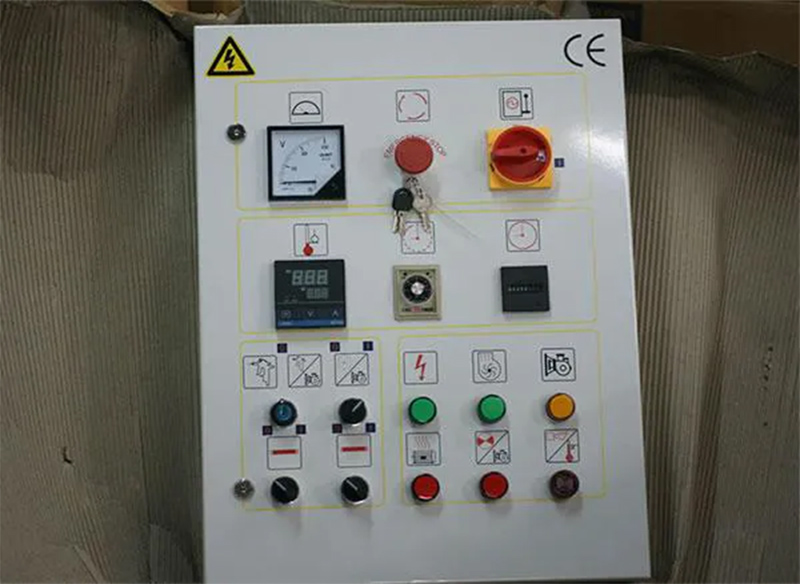

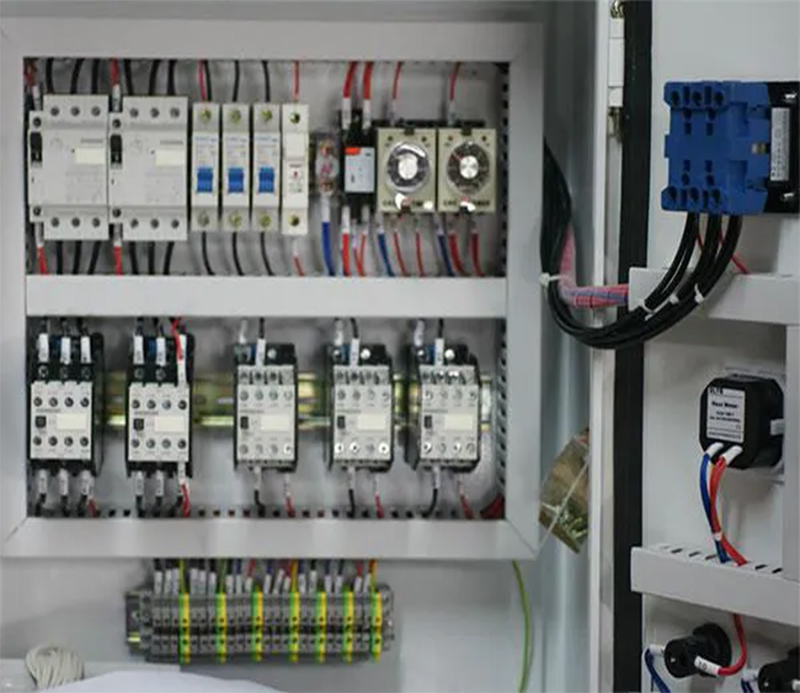

Control system
Control system
It is vitally important for a company to maintain friendly relationship with distributors and dealers in order to provide considerate after-sales service to its client. Therefore, we particularly offer the following services to the distributors.
For each car spray booth, we will deliver 2 pieces of lamp, 2 rectifiers, 10 screws, 3-5 sheets along with the product, extra.
For special screw, hanger, light box sheet and some other small accessories easy to lose during installation, our warehouse worker will deliver 1-2 pieces more as the spare part.
As to the orders for 3-4 sets of standard car spray booth, JINGZHONGJING will present 1 piece of standard wallboard to our client.
1 set of door sealing strip for 50mm wallboard and 10 pieces of electronic rectifier for the distributors who order more than 6 sets of car painting equipment from us, quarterly.
For the distributors who purchase more than 12 sets of industrial spray booth from us within two quarters, we will offer 1 set of front door bolt, 1 programme control box, 5 pieces of hinges, and 5 pieces of handle.
1 set of actuator, 2 sets of door bolts, 10 pieces of hinges, 5 pieces of handle and temperature gauge with inductive probe for customers ordering 20 sets of car spray booth from us within 3 quarters.
Particularly, for the orders with the sale price 10% higher than the floor price, we will provide a reel of 1×20m fiberglass free of charge. As to the purchase order for more than 3 sets of thermal paint booth with the profit rate over 10%, we will present 1 set of roof filtering cotton.
We will communicate with our distributors with annual purchase amount up to RMB 2 million through Email quarterly to confirm if any support for the quick-wear parts for car spray booth is needed, such as 4kW centrifugal fan, door bolt, and some others.
For VIP customers, we will give gift to our client on his birthday or Christmas Day.
Regular return visit to VIP customer enables us to understand desired after-sales service and provide related solution in time.
We are looking forward to working with you!
If you have any product inquiry, custom paint booth need, please feel free to contact us.
