| Wood Paint Line | |||
Outside Dimension (mm) | 7006*5460*3420(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 9KW | Total Weight(Ton) | 3.8 |

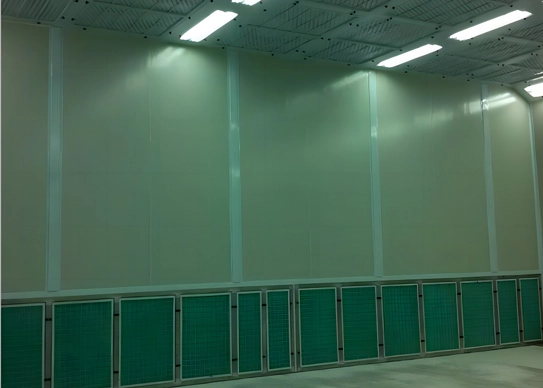

Cabin System | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
Ceiling panel | 0.8mm galvanized steel sheet. | ||
Ramps | Two pieces 2000*600mm ramps | ||
Basement | 300mm depth, two rows grids and three rows checkered plates. | ||
Glass | 5mm safety tempered glass | ||
Windows | Square glass windows | ||
Air Make-up System | Air inlet fan system | 1*7.5kw turbo fan | |
Exhausted fan system | For option | ||
Air capacity | 22000m3/h | ||
Exhausted ducting | 4 meters straight ducting, one 90°elbow and one 45°elbow. | ||
Purification System | Pre-filter | G3 grade | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | Fiber glass filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner: | BT14 diesel burner | ||
Heating productivity | 140000Kcal/h | ||
Spray to baking switch | Pneumatic damper | ||
Chimney ducting | 3 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
fuel consumption | 6-8L/vehicle | ||
Lighting System | Ceiling lights | 8 Units, each 4*18W LED lamps. Total 576 W | |
Side lights | For option | ||
Illumination | 800LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm | |
Specialized coatings enhance wood grain and texture, preserving natural beauty.
UV curing technology for rapid drying and hardening, increasing throughput.
Customizable finishes from matte to high gloss, meeting diverse customer needs.
Dust-free environment to ensure flawless application, maintaining high quality.
We are looking forward to working with you!
If you have any product inquiry, custom paint booth need, please feel free to contact us.
