JZJ-FB-9 Big Bus Spray Booth Truck Paint Oven Plane Painting Booth/Oven/Rooom/Chamber Auto Painting Baking Booth Spray Room Dry Room Heavy Duty Spray Booths CE

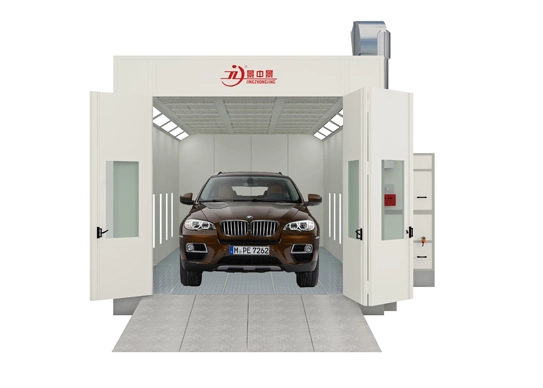

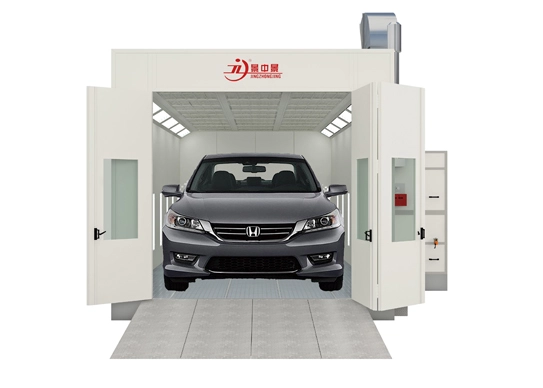

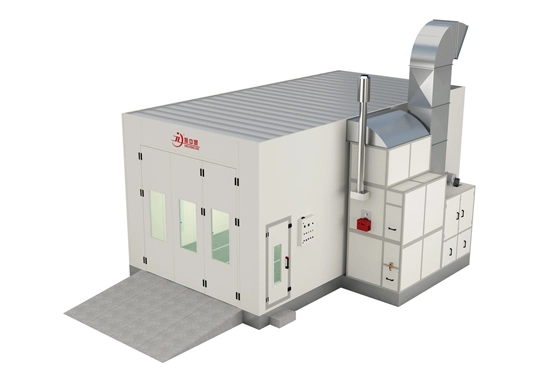

Big Paint booth is a specialised equipment for painting and baking of large vehicles such as buses,truck,Metro,, which is often referred to as paint booth. This kind of equipment adopts mechanical control, which can significantly improve the efficiency of the spraying work and the quality of the paint surface, and at the same time has a good working environment and safety performance. It is suitable for all kinds of large parts, hardware, large automobiles, buses and other painting and baking, and is especially suitable for the painting and baking needs of large vehicles such as buses. Through its high efficiency, safety and environmental protection features, the bus spray booth provides great convenience for spraying paint on buses and other large vehicles, and is an indispensable equipment in the modern auto repair and beauty industry.

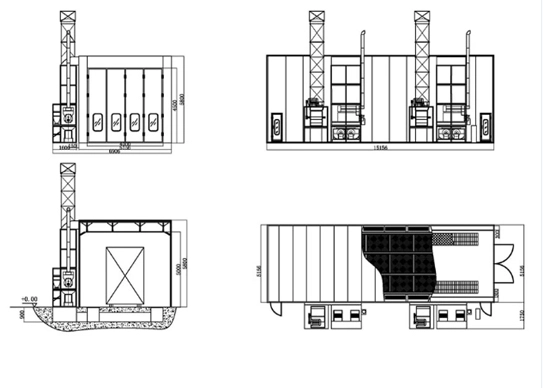

Outside Dimension (mm) | 9146*6400*4100(L*W*H) | Inside Dimension(mm) | 9000*4500*3500(L*W*H) |
Front Door(mm) | 3300*3400(W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 30KW | ||
Cabin Dystem | Wall panel | 70mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
Ceiling panel | 0.8mm galvanized steel sheet. | ||
Basement | 350mm depth, full grids | ||
Ramps | Four pieces 2500*900mm ramps | ||
Windows | 5mm safety tempered glass | ||
Air Make-up System | Air inlet fan system | 2*7.5kw centrifugal fan | |
Exhausted fan system | 1*15kw belt drive centrifugal fan | ||
Air capacity for fresh air | 36000m3/h | ||
Air capacity for exhausted air | 36000 m3/h | ||
Air control method | One manual damper for exhausted system | ||
Exhausted ducting | 6 meters straight ducting, one 90°elbow and one 45°elbow. | ||
Purification System | Pre-filter | G3 grade | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | Fiber glass filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner: | Riello RG5S diesel burner | ||
Heating productivity | 260000Kcal/h | ||
Spray to baking switch | 20N BELIMO brand electrical damper | ||
Chimney ducting | 6 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
fuel consumption | 10-12L/vehicle | ||
Lighting System | Ceiling lights | 12Units, each 4 x 18W LED lamps ,Total 864W | |
Side lights | 12Units, each 2 X18W LED lamps, Total 432W | ||
Illumination | 900LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm |
