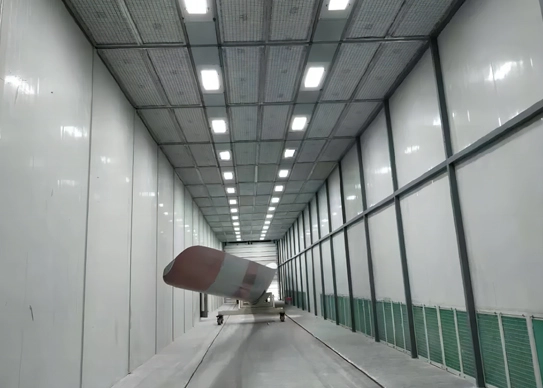

Wind turbine blade production coating line is mainly used for wind turbine blade automatic spraying operations, a blade using two wind turbine blade spraying equipment to work in the spraying room, the two equipment are symmetrical and are used for spraying on the windward side and leeward side of the blade respectively. Wind power equipment mainly consists of blades, gear boxes, towers and other components, generally in the desert, ocean, plateau and other marginal areas, subject to light, sand, wind and rain and other factors erosion, and the general service life of the wind power equipment to reach more than 20 years, the coating needs to be more excellent corrosion resistance, strong abrasion resistance, and long-lasting weathering and ultraviolet resistance, which puts forward a higher demand for the wind power industry coating.
Systems | Equipment Details |
Pre-treamment | 1. Food wash equipment 2. Degrease equipment 3. Electrophoresis equipment 4. Electrophoresis equipment |
Chain conveyor system | 1. Aluminum fixture block 2. Chain transit unit 3. Steel alloy track 4. Inverterters &gear motor |
Spray booth | 1. Size: Customied 2. Fan exhaust system 3. Exhaust gas treatment system 4. Filtersystem 5. Lighting system 6. Control system |
Oven | 1. IR tunnel oven and UV machine 2. TEM:50-150 degree 3. Heating pipe and UV lamp 4. Mirror stainess steel inner wall 5.T50-150mm rock wood thermal insulation 6. China motor |
Rotation unit | 1.Selt-rotation sysem 2 sets 2. Auto spray gun hold(with scale) 3. Selt-rotation motor 4. Magiceye sensor 5. DEVELBISS spray gun 6 sets |
Control system | 1. Switch or PLC touching screen 2. air switch &overload ensure 3. Branded power switch &indicator light 4. Branded pneumatic elements & Magnetism valve |

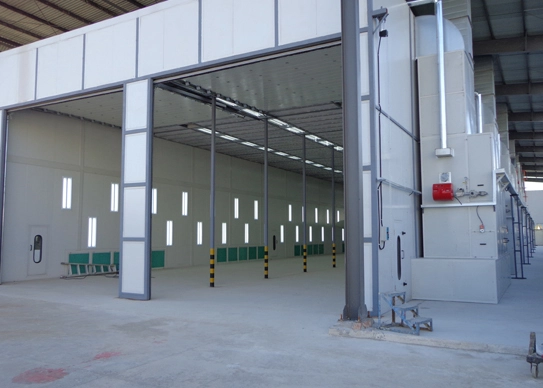

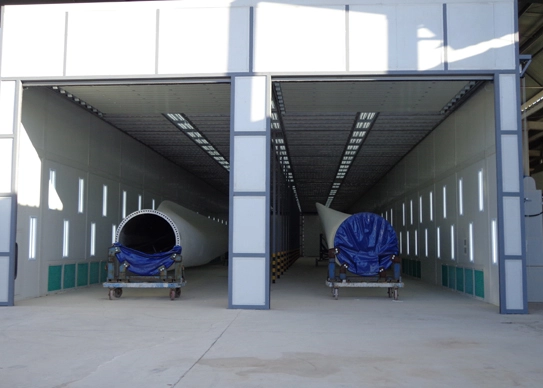

Designed for large-scale structures with high vertical clearance, accommodating tall towers.
Climate-controlled environment for consistent curing, ensuring optimal results.
Advanced filtration systems to manage overspray and emissions, promoting safety.
Robust safety features to handle flammable materials, ensuring worker protection.
We are looking forward to working with you!
If you have any product inquiry, custom paint booth need, please feel free to contact us.
