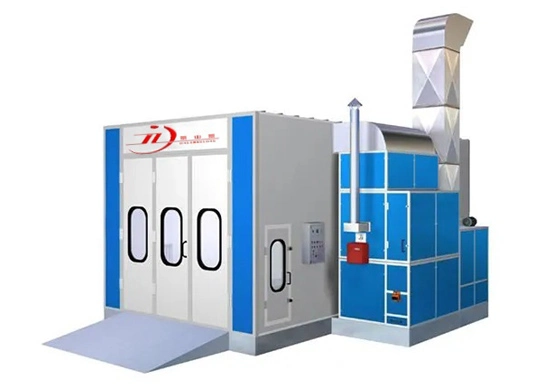

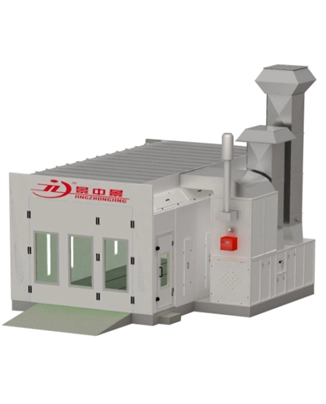

Paint booth is a specialised equipment for painting and baking of large vehicles such as buses, which is often referred to as automotive paint booth. This kind of equipment adopts mechanical control, which can significantly improve the efficiency of the spraying work and the quality of the paint surface, and at the same time has a good working environment and safety performance. It is suitable for all kinds of large parts, hardware, large automobiles, buses and other painting and baking, and is especially suitable for the painting and baking needs of large vehicles such as buses. Through its high efficiency, safety and environmental protection features, the bus spray booth provides great convenience for spraying paint on buses and other large vehicles, and is an indispensable equipment in the modern auto repair and beauty industry.
Configuration List
External Dimension (mm) | Internal Dimension (mm) | Gate Size (mm) | Total Power (kW) |
9106×6356×4450 | 9000×4500×3500 | 3300(width)×3400(height) | 29.5 |
Basement | 1. The basement is formed of the galvanized steel plate of 350mm high and the anti-corrosive square steel frame. It is configured with two gratings and three checkered plates. | ||
Front Door | 1. This 9m car spray booth is designed with three single doors. | ||
Service Door | A service door is utilized with the dimension of 700×2000mm (W×H). It is assembled with a pressure lock. | ||
Chamber | 1. Our 9m bus spray booth takes advantage of the insertion type EPS board. The wallboard is 50mm thick and 1150mm wide. Additionally, the colorful steel plate is used with the thickness of 0.426mm. | ||
Air Supply System | 1. Two double-inlet centrifugal type supply fans with external rotor are equipped. They possess the model of YDW5.6B, the power of 7.5kW, and the air capacity of 20,000m3/h. | ||
Air Exhaust System | 1. An 11kW centrifugal type exhaust fan with large impeller is used with the model of 4-82. It is driven by a belt, and has an air capacity of 36000m3/h. | ||
Heating System | 1. This 9m bus spray booth is installed with a Riello-brand RG5S type burner, which gives a maximum heating value of 260,000Kcal/h. | ||
Purification System | 1. The superior-quality filter screen is used for the primary filtration of intake air. It can take hold of the dust particles with the diameter of over 10μm. | ||
Lighting System | 1. On the side of the ceiling, there are 48 pieces of 18W LED light tubes in 12 groups. Each group holds 4 pieces of light tubes. | ||
Electric Control System | 1. A face plate with buttons serves to control this system. | ||
Exhaust Gas Treatment | The activated carbon is utilized to filter waste gas. The exhaust emissions reach the GB16297-1996 national standard. (on basis of the integrated emission standard of air pollutants) | ||
The basement is 350mm high. It has a load capacity of 3.5 tons. Additionally, it is designed with 4 ramps.
Our wallboard is composed of the fire-resistant polystyrene insulation board of 50mm thick as well as the colorful steel plate of 0.426mm.
For supplying air, two 7.5kW centrifugal fans are adopted. For exhausting air, one 11kW large-impeller fan is utilized, which is driven by the belt. In this way, the air change ratio inside the chamber can be guaranteed, and the paint mist can be well discharged.
Moreover, our 9m bus spray booth puts to use a set of RG5S burner which comes from Italy Riello brand.
All light tubes are equipped with the renowned-brand electronic ballast. In comparison with the former electronic lamps, they can give more stable performance.
As an option, this 9m bus spray booth can come without a basement. The return air can be achieved from either two rows of trench or the side.
