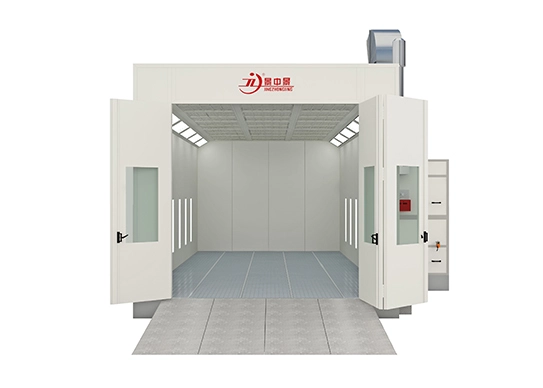

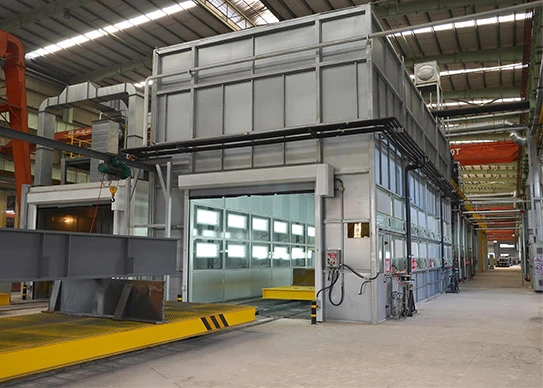

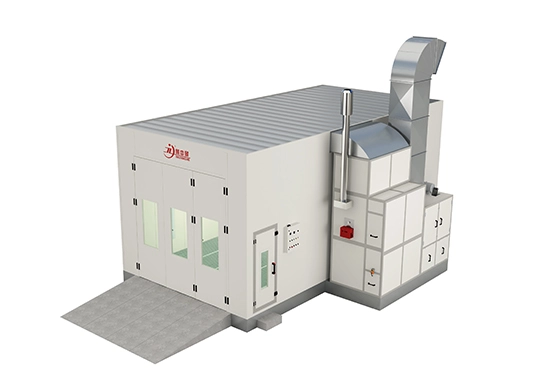

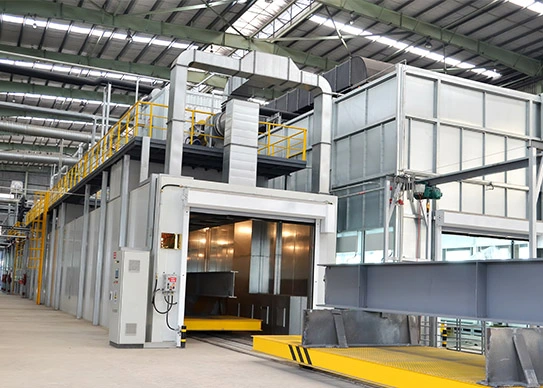

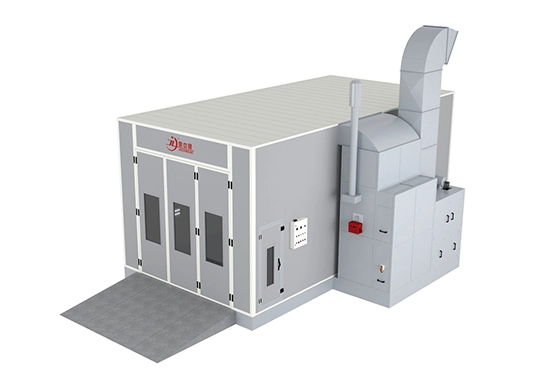

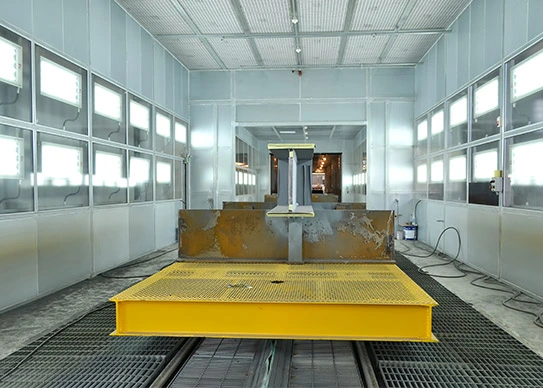

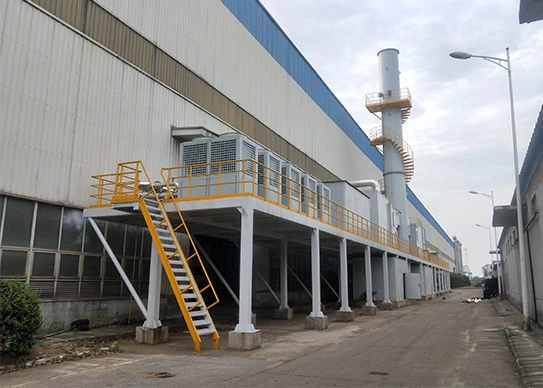

Heavy machinery painting room is a special facility for heavy machinery painting, it solves the problem of difficult movement of heavy workpiece painting. Our heavy duty inflatable paint booth features a telescopic movable design that can be shrunk and expanded to fit different sizes of workpieces. This design greatly simplifies the process of constantly using the workshop crane to lift large and heavy workpieces to and fro, without additional transport tools.

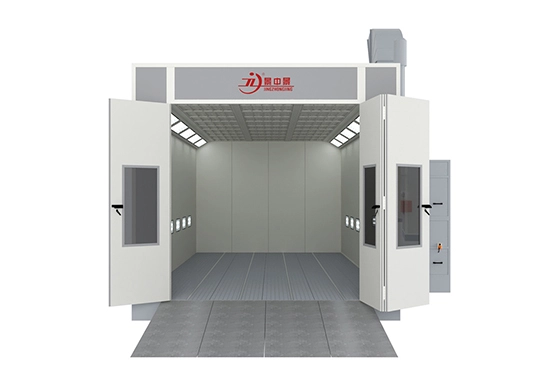

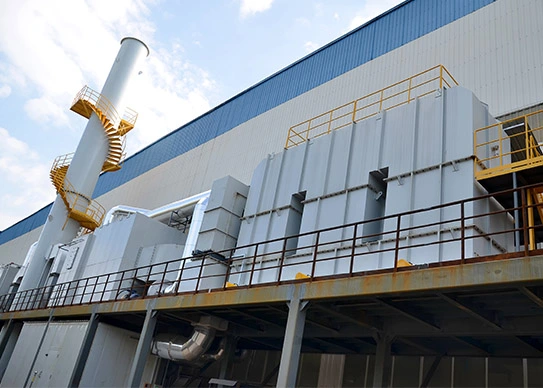

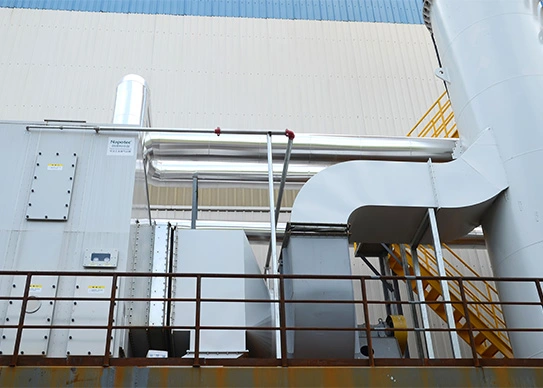

| Heavy Machinery Paint Booth | |||
Outside Dimension (mm) | 9146*6400*4100(L*W*H) | Inside Dimension(mm) | 9000*4500*3500(L*W*H) |
Front Door(mm) | 3300*3400(W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 30KW | ||
Cabin Dystem | Wall panel | 70mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
Ceiling panel | 0.8mm galvanized steel sheet. | ||
Basement | 350mm depth, full grids | ||
Ramps | Four pieces 2500*900mm ramps | ||
Windows | 5mm safety tempered glass | ||
Air Make-up System | Air inlet fan system | 2*7.5kw centrifugal fan | |
Exhausted fan system | 1*15kw belt drive centrifugal fan | ||
Air capacity for fresh air | 36000m3/h | ||
Air capacity for exhausted air | 36000 m3/h | ||
Air control method | One manual damper for exhausted system | ||
Exhausted ducting | 6 meters straight ducting, one 90°elbow and one 45°elbow. | ||
Purification System | Pre-filter | G3 grade | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | Fiber glass filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner: | Riello RG5S diesel burner | ||
Heating productivity | 260000Kcal/h | ||
Spray to baking switch | 20N BELIMO brand electrical damper | ||
Chimney ducting | 6 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
fuel consumption | 10-12L/vehicle | ||
Lighting System | Ceiling lights | 12Units, each 4 x 18W LED lamps ,Total 864W | |
Side lights | 12Units, each 2 X18W LED lamps, Total 432W | ||
Illumination | 900LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm | |
Reinforced structure to accommodate large, heavy equipment, ensuring stability.
High-pressure spray systems for thick, durable coatings, enhancing protection.
Integrated lifting and handling equipment for ease of movement, improving efficiency.
Multi-stage filtration to ensure a clean working environment, maintaining air quality.
