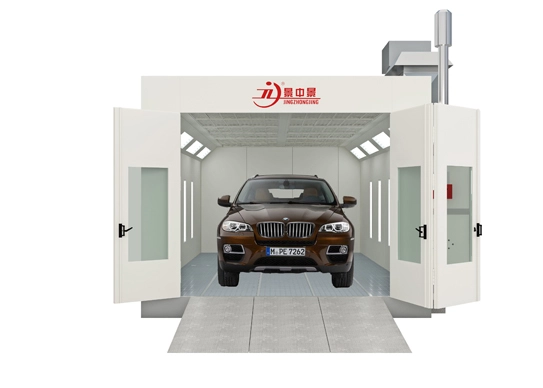

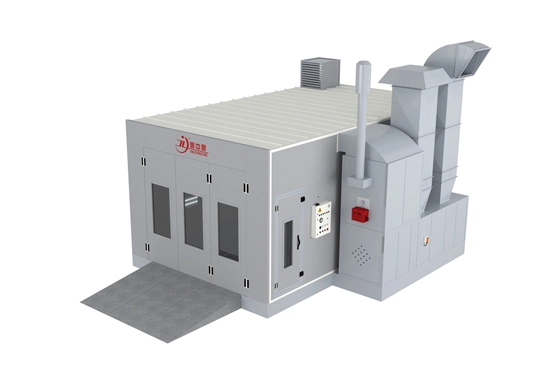

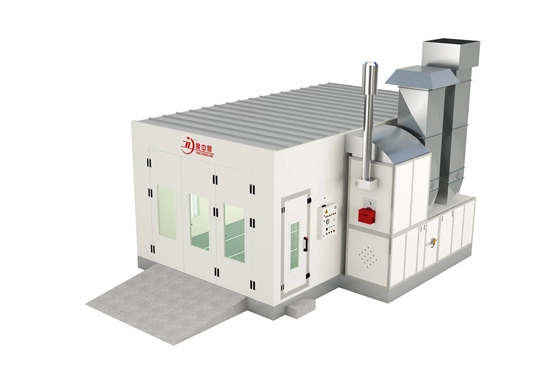

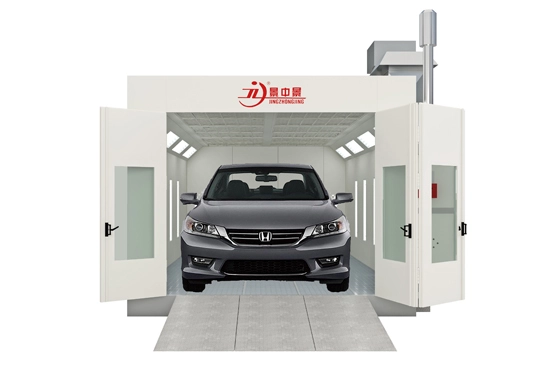

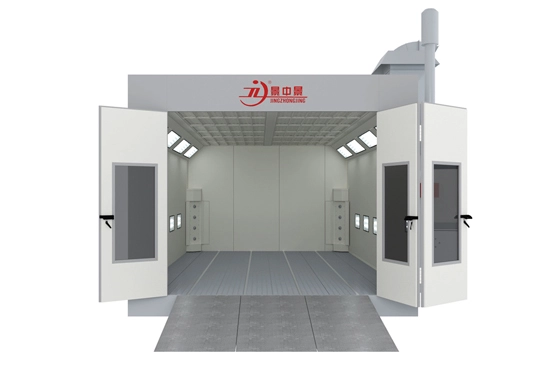

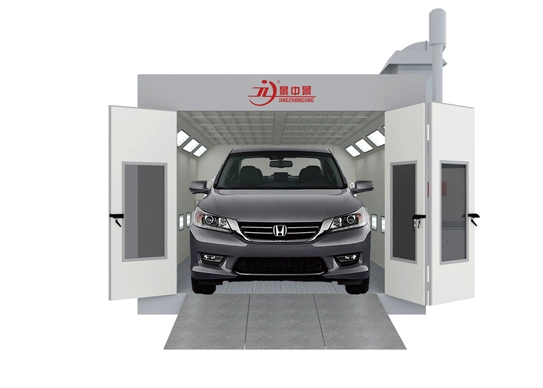

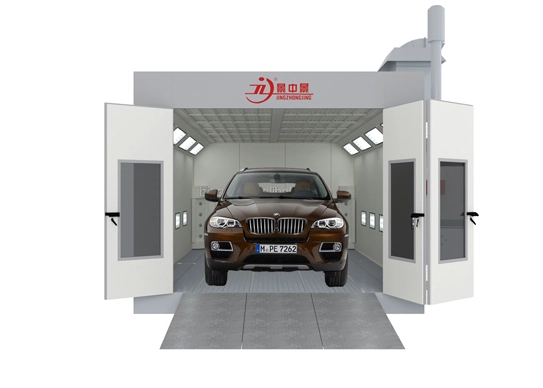

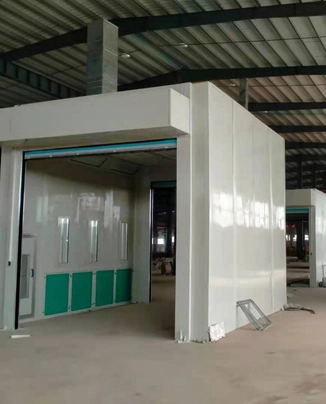

Painting room is a kind of equipment specially used for car painting and baking, also known as car painting room. The equipment adopts mechanical control, can save space, is convenient to use, can be forced to dry the primer,top paint,speed up the rhythm of work, improve work efficiency and coating quality. The advantages of car painting room include early processing fast, effect is better, good working environment,high efficiency,quality assurance and high safety factor. Compared with the traditional method of automobile painting, car spray booth not only improves work efficiency and coating quality,also provides a good working environment,reduces the influence of human factors on the quality of paint, ensures the health and safety of operators at the same time. In addition, car spray painting room is also equipped with filter device and ventilation system, to keep the air in the room clean,to prevent external dust and other pollutants to pollute the car paint.
Outside Dimension (mm) | 7006*5360*3480(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) | |
Front Door(mm) | 3000*2600(W*H) | Service Door (mm) | 800*2000(W*H) | |
Total Power | 19KW | |||
Cabin System | Wall panel | 50mm rock-wool sandwich panel, steel sheet thickness: 0.6mm | ||
Ceiling panel | Galvanized steel sheet. | |||
Basement | 300mm depth, full galvanized grids | |||
Ramp | Three pieces 2000*900mm ramps | |||
Glass | 5mm safety tempered glass | |||
Windows | Square glass windows. | |||
Air Make-up System | Air inlet fan system | 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated | ||
Exhausted fan system | 1*7.5kw turbo fan, proof-explosion ABB/Siemens motor,Ex rated | |||
Air capacity | 25000m3/h | |||
Air flowing speed | 0.3m/s in empty booth | |||
Air control method | Air inlet system and exhausted system, each with 1 manual damper | |||
Air ducting | 8 meters air duct, one flop damper and one weather hood | |||
Purification System | Pre-filter | G3 grade, Pocket filter | ||
Ceiling filter | EU5 / F5 | |||
Floor filter | Green fiber glass filter / G3 grade | |||
Exhausted fan filters | Pocket filter and active carbon | |||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | ||
Heating burner: | Riello G20 diesel burner | |||
Heating productivity | 180000Kcal/h | |||
Spray to baking switch | 20N BELLIMO brand Electrical Damper | |||
Chimney ducting | 3 meters stainless ducting and one chimney cap | |||
Max heating temperature | 80℃ | |||
Heating time | 5-6min(20-60℃) | |||
fuel consumption | 6-8L/vehicle | |||
Lighting System | Ceiling lights | 8 Units, each 4 * 18W LED lamps. Total 576 W | ||
Side lights | 8 Units, each 2 * 18W LED lamps, Total 288W | |||
Illumination | 900LUX | |||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | ||
