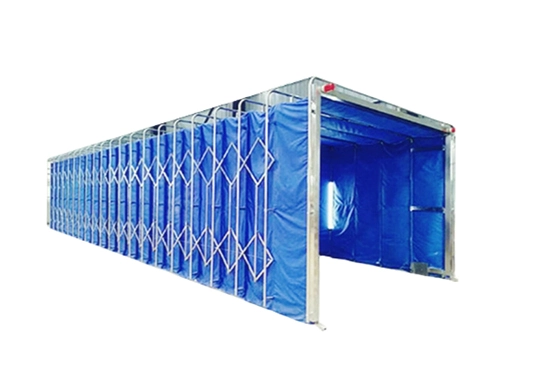

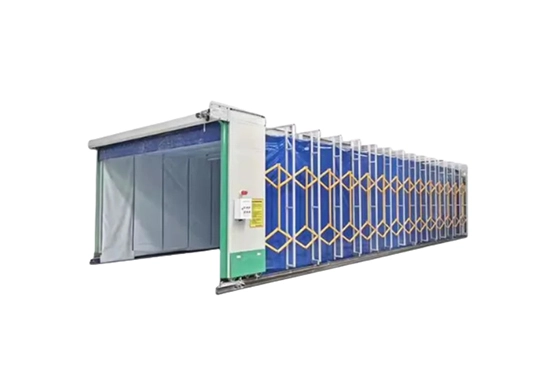

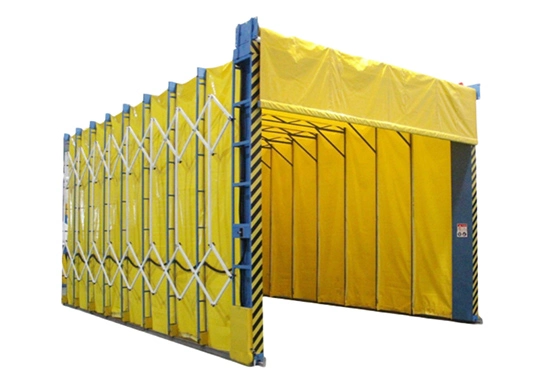

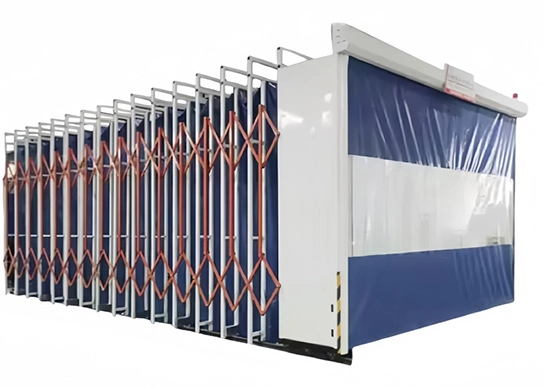

Telescopic spray booth is a kind of painting equipment with flexible design and easy to use, which is widely used in the spraying process of furniture, mechanical equipment and other industries. Due to the small footprint, quick installation, beautiful appearance and simple maintenance, the telescopic spray booth not only saves the footprint and use of space, but also reduces the operating cost. It is mainly used to solve the problem of difficult handling and turnover of large and medium-sized workpieces, simplify the repeated running process of overhead crane carrying heavy workpieces, and is suitable for all kinds of non-standard customised mobile telescopic rooms.
Inner Size | 7100(L)x4000(W)x2400(H)mm |
Main Door | 2 doors, 50mm EPS panel, 2200x2400 mm |
Basement | 2 rows grilles, 3 rows checkered plates |
Intake System | 7.5kW direct drive motor |
Exhaust System | 7.5Kw, belt-drive motor |
Lighting System | 8x4 pcs=32 pcs x18W, LED lamp; llumination≥800LUX |
Filter System | G3 primary filter, Ceiling fitler. F5600G; Floor filter. fiber glass filter, with exhaust filter |
Heating System | G20 bumer+Heating exchanger SUS304, heating capacity: 180,000 Kcal/h |
Control system | Main components are Schneider brand, Painting, constant temperature painting, baking, lighting, emergency stop switch, fault alarm, timer, delayed baking stop protection, motor overload and overcurrent protection, fan and heating system interlocking, etc. |
AirSpeed | ≥0.25m/s |
Total Power | 16.5kw |
Space-Saving Design: The telescopic paint booth can be retracted when not in use, maximizing available workspace and providing flexibility for various projects.
Efficient Ventilation: Equipped with advanced ventilation systems, it ensures optimal air quality and minimizes overspray, enhancing safety and finish quality.
Durable Construction: Built with high-quality materials, the booth offers long-lasting durability and resistance to wear and tear, suitable for frequent use.
Easy Assembly: The telescopic design allows for quick and straightforward setup, reducing downtime and increasing productivity for painting tasks.
