The auto repair paint booth mainly displayed a variety of water-based repair paint products, technology, solutions and services, aimed at promoting the development of green auto repair industry. The automotive refinish paint booths not only showcased the latest products and technologies, also demonstrated the importance the industry attaches to environmentally friendly and efficient refinish solutions, and how technological innovation is driving the development of the automotive refinish industry.

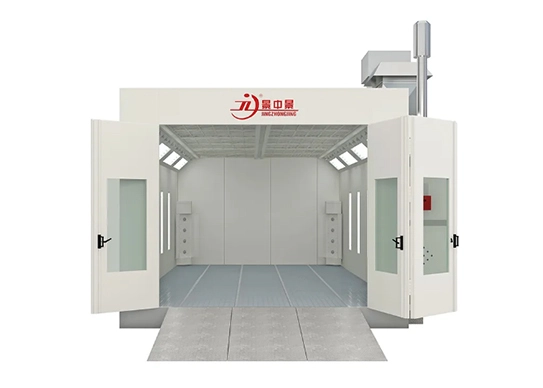

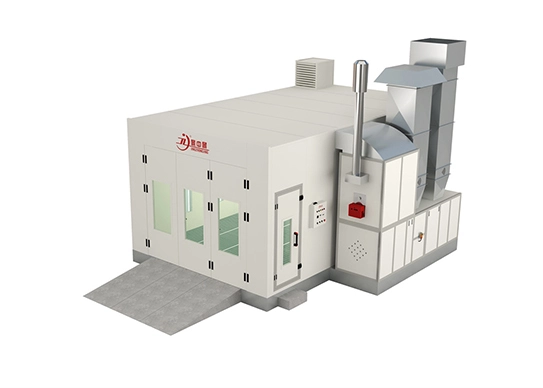

| Auto Refinish Booths | |||
Outside Dimension (mm) | 7006 * 5360 * 4150(L*W*H) | Inside Dimension(mm) | 6900* 4000 * 2650(L*W*H) |
Front Door(mm) | 3000*2600 (W*H) | Service Door (mm) | 800*2000(W*H) |
Total Power | 24KW | ||
Cabin System | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm | |
Ceiling panel | 50mm rock-wool sandwich panel | ||
Basement | 300mm depth, full galvanized grids | ||
Ramp | Three pieces 2000*900mm ramps | ||
Glass | 5mm safety tempered glass | ||
Windows | Square glass windows | ||
Air Make-up System | Air inlet fan system | 1 * 7.5kw turbo fan | |
Exhausted fan system | 1 * 7.5kw turbo fan | ||
Air capacity | 25000m3/h | ||
Air control method | One manual damper for air inlet and exhausted system | ||
Exhausted ducting | 8 meters air duct, one flop damper and one weather hood | ||
Water-based paint spraying system | Stainless air nozzles | 36pcs | |
Corner dryers | 2 * 0. 18KW motor | ||
Ceiling fan | 2 * 1.5KW, air capacity: 4500m3/h | ||
Purification System | Pre-filter | G3 grade. Pocket filter. | |
Ceiling filter | EU5 / F5 | ||
Floor filter | Green fiber glass filter / G3 grade | ||
Exhausted fan filters | Pocket filter and active carbon | ||
Heating System | Heat exchanger | SUS304 material, argon arc welding. | |
Heating burner | Riello G20 diesel burner | ||
Heating productivity | 180000Kcal/h | ||
Spray to baking switch | 20N BELIMO brand electrical damper | ||
Chimney ducting | 3 meters stainless ducting and one chimney cap | ||
Max heating temperature | 80℃ | ||
Heating time | 4-6min(20-60℃) | ||
fuel consumption | 6-8Litters /vehicle | ||

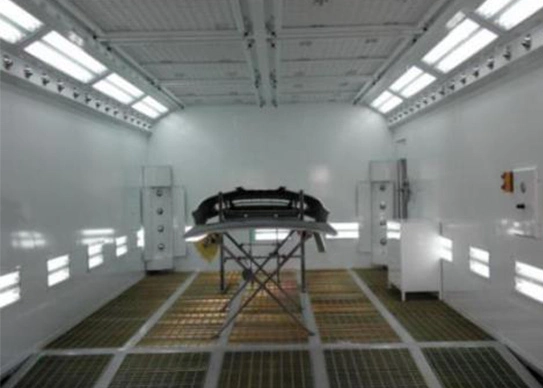

Lighting System | Ceiling lights | 8 Units, each 4 x 18W Philips lamps, Total 576 W | |
Side lights | 8 Units, each 2 x 18W Philips lamps, Total 288W | ||
Illumination | 900LUX | ||
Controlling System | Switched control panel | Spraying & baking switch, before baking flash-off, after baking flash off, lighting switch, emergency stop, breakdown alarm, failure alarm | |
Advanced Filtration Systems: Automotive refinish paint booths are equipped with high-efficiency filtration systems that capture overspray and contaminants, ensuring a clean environment for superior paint finishes and compliance with environmental regulations.
Temperature and Humidity Control: These booths feature precise temperature and humidity control mechanisms, providing optimal conditions for paint application and curing, which enhances the quality and durability of the vehicle’s finish.
Efficient Airflow Design: The booths are designed with advanced airflow systems that ensure even distribution of air, reducing the risk of dust and debris settling on the vehicle, thus achieving a flawless paint job.
Integrated Lighting Solutions: Auto refinish booths come with high-intensity, shadow-free lighting that mimics natural daylight, allowing technicians to see true colors and details, which is crucial for achieving perfect color matching and finish quality.
